Speedaire

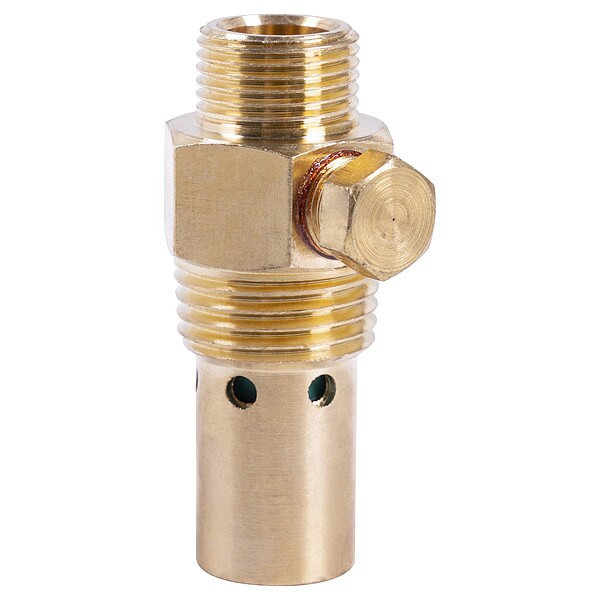

Check Valve, Gold, 1.1 in Overall L

product price: $11.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Inlet (In.) 3/8 in (M)NPT
  • Outlet (In.) 3/8 in (F)NPT
  • Max. Pressure (PSI) 150 psi
  • Connection Type MNPT
  • Overall Height 2.3 in
See all product information

Product Information

Dimensions

Overall Height 2.3 in
Inlet Size 7/16 in
Body Size 1 in
Hex Size (In.) 7/8 in
Outlet Size 3/8 in
Orifice Diameter 1/2 in
Overall Depth 1.1 in
Overall Length 1.1 in
Hex Size 7/8 in
Length (In.) 1 1/8 in

Details

Inlet (In.) 3/8 in (M)NPT
Item Check Valve
Outlet (In.) 3/8 in (F)NPT
Max. Pressure (PSI) 150 psi
Connection Type MNPT
Inlet Type NPT
Max. Temp. (F) 392 Degrees F
Seat Material Brass
Body Finish/Coating Brass
Body Color Gold
Inlet Gender Male
Spring Material Stainless Steel
Poppet Flouropolymer
Minimum Operating Pressure Gauge 10 psi
Housing Material Brass
Disc Positive Seating Fluoropolymer, for Maximum Air Flow
Body Material Brass
Material Brass
Outlet Gender Female
Maximum Operating Temperature 392 Degrees F
Minimum Operating Temperature -4 Degrees F
Check Valve Included No
Mounting Vertical
O-Ring Material Fluororubber
Disc Type Positive Seating Fluoropolymer
Pilot Port Tube OD 3/8 in
Application Portable Air Inflation
Maximum Operating Pressure 150 psi
Poppet Material Stainless Steel
Outlet Type NPT
Actuation Type Air
Maximum Operating Pressure Gauge 170 psi
Number of Ports 1
Type Air
Mounting Position Vertical
Seal Material Fluororubber
Body Style Threaded For Panel Mount

Description

Check Valve, Air, Inlet (In.) 3/8 in (M)NPT, Outlet (In.) 3/8 in (F)NPT, Brass, Max. Pressure (PSI) 150 psi, Hex Size (In.) 7/8 in, Max. Temp. (F) 392 Degrees F, Vertical Mounting, Length (In.) 1 1/8 in, Stainless Steel Spring Material, Disc Positive Seating Fluoropolymer, for Maximum Air Flow, Flouropolymer Poppet, Thread Coating Not Applicable, Portable Air Inflation
