Speedaire

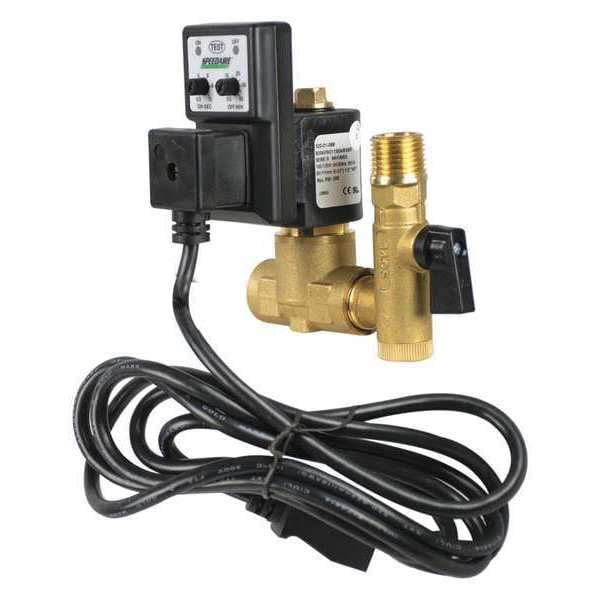

Auto Drain Valve, 230V, 1/4 In., 0.75 gpm
Mfr # 12F742
Zoro # G7531465
Free Shipping & Returns
$237.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Size 1/2 in NPT
- Drain Size 1/4 in
- Drain Rate 0.75 gpm
- Adjustable Drain Cycle 0.5 sec to 45 min
- Purge Time 0.5 sec to 10 sec
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Speedaire
- MFR # 12F742
- Zoro # G7531465
- UPC # 190735601259
- Country of Origin Ireland
- Category Pneumatic Condensate Auto Drains
Dimensions
Pipe Size | 1/2 in NPT |
Drain Size | 1/4 in |
Overall Width | 3 1/2 in |
Overall Depth | 3 5/16 in |
Overall Height | 4 1/2 in |
Details
Item | Timed Electric Auto Drain Valve |
Drain Rate | 0.75 gpm |
Adjustable Drain Cycle | 0.5 sec to 45 min |
Purge Time | 0.5 sec to 10 sec |
Voltage | 230 V |
Max. Pressure | 725 psi |
Operating Temp. Range | 40 Degrees to 176 Degrees F |
Amps AC | 0.25 A |
Hz | 50/60 Hz |
Body Material | Brass |
Includes | 6 ft Cord, Filter Ball Valve |
Enclosure | IP65 |
Voltage - Maximum | 230 V |
Description
Timed Electric Auto Drain Valve, Pipe Size 1/2 in NPT, Drain Size 1/4 in, Drain Rate 0.75 gpm, Adjustable Drain Cycle 0.5 sec to 45 min, Purge Time 0.5 sec to 10 sec, Voltage 230 V, Max. Pressure 725 psi, Operating Temp. Range 40 Degrees to 176 Degrees F, Hz 50/60 Hz, Amps AC 0.25 A, Enclosure IP65, Body Material Brass, Overall Height 4 1/2 in, Overall Width 3 1/2 in, Overall Depth 3 5/16 in, Includes 6 ft Cord, Filter Ball Valve
