Shop All Air Motors
Speedaire

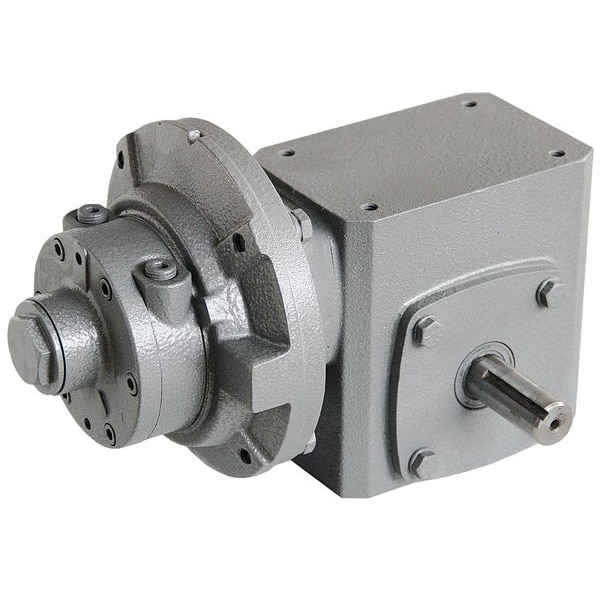

Air Gearmotor, 0.9 HP, 27 cfm, 150 rpm
Mfr # 22UX57
Zoro # G6075772
product price: $711.99
/ea
Free Shipping & Returns
$711.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Running Torque @ Max. Pressure 256 in-lb
- HP 0.9 hp
- Max. Air Flow 27 cfm
- No Load RPM 150 RPM
- Shaft Dia. 5/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Speedaire
- MFR # 22UX57
- Zoro # G6075772
- UPC # 190735606414
- Country of Origin China
- Category Air Motors
Dimensions
| Shaft Dia. | 5/8 in |
| Port Size | 1/4 in NPT |
| Overall Length | 9 7/8 in |
| Overall Height | 6 5/16 in |
| Shaft Length | 2 1/16 in |
| Overall Width | 7 1/4 in |
| Keyway Length | 1 in |
| Manufacturers Warranty Length | 1 yr |
| Keyway Depth | 1/16 in |
| Keyway Width | 1/8 in |
| Shaft Diameter | 5/8 in |
| Inlet Size | 1/4 in |
Description
Air Gearmotor, Output Power @ Maximum Speed 0.9 hp, Maximum Torque 256 in-lb, No Load Speed 150 RPM, Maximum Flow Rate 27 cfm, Shaft Diameter 5/8 in, Shaft Length 2 1/16 in, Mount Type Base, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CCW, Housing Material Cast Iron, Gear Ratio 20:1, Air Consumption 27 cfm, Housing Material Finish Painted, AGMA Gear Class Not Applicable, Air Inlet Center to Center Distance 2 1/2 in, Inlet Gender Female, Output Power @ 25 Percent Maximum Speed Not Applicable
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
