  11. Solenoid Air Control Valve, 1/8 In, 24VDC
Shop All Solenoid Air Control Valves
Smc

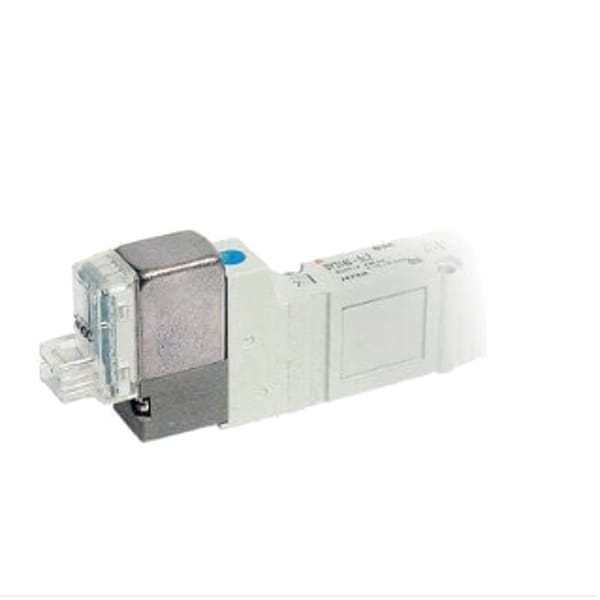

Solenoid Air Control Valve, 1/8 In, 24VDC

product price: $71.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 5-Way/2-Position
  • Voltage 24V DC
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 0.58
  • Pipe Size 1/8 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pipe Size 1/8 in
Overall Width 1 1/2 in
Overall Height 1 1/4 in
Overall Length 4 1/2 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 5-Way/2-Position
Voltage 24V DC
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 0.58
Max. CFM - Valves 1.4 cfm
Operational Pressure Range 22 to 100 psi
Ambient Temp. Range 14 Degrees to 122 Degrees F
CFM 1.4
Standards CE
Body Style Manifold
Air Valve Type 5-Way, 2-Position
Actuator/Return Solenoid/Spring
Power Consumption 0.4 W
Shifting Technology Solenoid
Pilot Pressure 22
Pressure Range 22 to 100 psi
Electrical Connections Plug Connector with Lead Wire

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/8 in, Max. CFM - Valves 1.4 cfm, Operational Pressure Range 22 to 100 psi, Body Style Manifold, Pilot Pressure 22, Coefficient of Volume 0.58, Plug Connector with Lead Wire Electrical Connections, Shifting Technology Solenoid, Power Consumption 0.4 W, Ambient Temp. Range 14 Degrees to 122 Degrees F, Overall Height 1 1/4 in, Overall Length 4 1/2 in
