Shop All Solenoid Air Control Valves
Smc

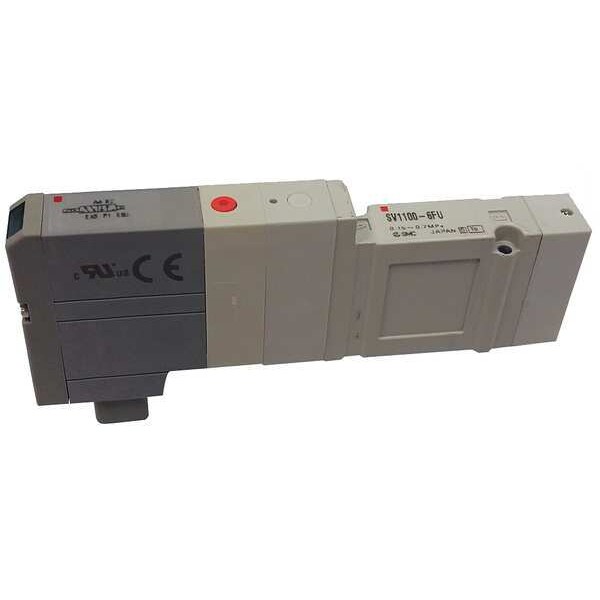

Solenoid Air Control, 12VDC
Mfr # SV1100-6FU
Zoro # G1974828
product price: $62.15
/ea
$62.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Valve Ways and Positions 5-Way/2-Position
- Voltage 12V DC
- Center Position Open
- Valve Actuator / Return Solenoid / Spring
- Coefficient of Volume 0.24
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Smc
- MFR # SV1100-6FU
- Zoro # G1974828
- Country of Origin Japan
- Category Solenoid Air Control Valves
Dimensions
Overall Height | 1 45/64 in |
Overall Length | 3 5/8 in |
Overall Width | 25/64 in |
Details
Item | Solenoid Air Control Valve |
Valve Ways and Positions | 5-Way/2-Position |
Voltage | 12V DC |
Center Position | Open |
Valve Actuator / Return | Solenoid / Spring |
Coefficient of Volume | 0.24 |
Max. CFM - Valves | 6.72 cfm |
Operational Pressure Range | 15 to 105 psi |
Pressure Range | 15 to 105 psi |
CFM | 6.72 |
Power Consumption | 0.6 W |
Body Style | Base Mounted |
Standards | CE, UL |
Override | Non-Locking Push |
Pilot Pressure | 15 |
Actuator/Return | Solenoid/Spring |
Normally Open / Normally Closed | Normally Open/Normally Closed |
Shifting Technology | Solenoid/Spring |
Electrical Connections | Plug-In |
Air Valve Type | 5-Way, 2-Position |
Ambient Temp. Range | 14 Degrees to 122 Degrees F |
Description
Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 12V DC, Center Position Open, Valve Actuator / Return Solenoid / Spring, Max. CFM - Valves 6.72 cfm, Operational Pressure Range 15 to 105 psi, Normally Open/Normally Closed, Body Style Base Mounted, Pilot Pressure 15, Coefficient of Volume 0.24, Plug-In Electrical Connections, Shifting Technology Solenoid/Spring, Power Consumption 0.6 W, Ambient Temp. Range 14 Degrees to 122 Degrees F, Override Non-Locking Push
