Smc

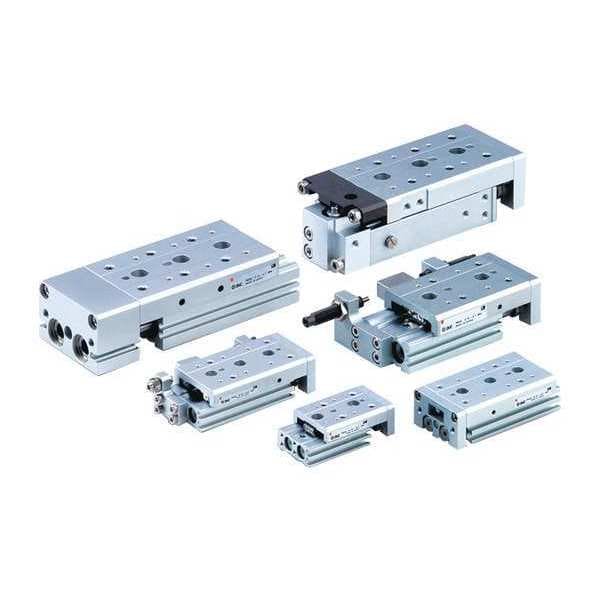

Precision Slide Table, 50mm Stroke

product price: $670.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Green Environmental Attribute RoHS 2011/65/EU Compliant
  • Fits Brand SMC
  • For Use With Mfr. Model Number MXS25-50A
  • Includes Both Sides Adjusters, Cross Roller Bearings, RC Port Threads
  • Series MXS
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand Smc
  • MFR # MXS25-50A
  • Zoro # G7276949
  • Country of Origin United States
  • Category Vacuum Parts

Dimensions

Cylinder Bore Diameter 25 mm

Details

Item Precision Slide Table, 50mm Stroke
Green Environmental Attribute RoHS 2011/65/EU Compliant
Fits Brand SMC
For Use With Mfr. Model Number MXS25-50A
Includes Both Sides Adjusters, Cross Roller Bearings, RC Port Threads
Series MXS
Minimum Actuation Time 0.1 sec
Repeatability +0.1 mm
Maximum Operating Temperature 60 Degrees C
Accuracy +0.1 mm
Minimum Operating Temperature -10 Degrees C
Maximum Actuation Time 1 sec
System of Measurement Metric
Maximum Operating Pressure 100 psi
Minimum Operating Pressure 21.7 psi
Seal Material Buna-N
Maximum Stroke 50 mm
Thrust Force @ 100 psi 687 N

Description

Precision Slide Table, 50mm Stroke, Maximum Stroke 50 mm, Cylinder Bore Diameter 25 mm, Series MXS, Thrust Force @ 100 psi 687 N, Minimum Actuation Time 0.1 sec, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 21.7 psi, Seal Material Buna-N, Maximum Operating Temperature 60 Degrees C, Minimum Operating Temperature -10 Degrees C, Accuracy +0.1 mm, Repeatability +0.1 mm, Maximum Actuation Time 1 sec, System of Measurement Metric
