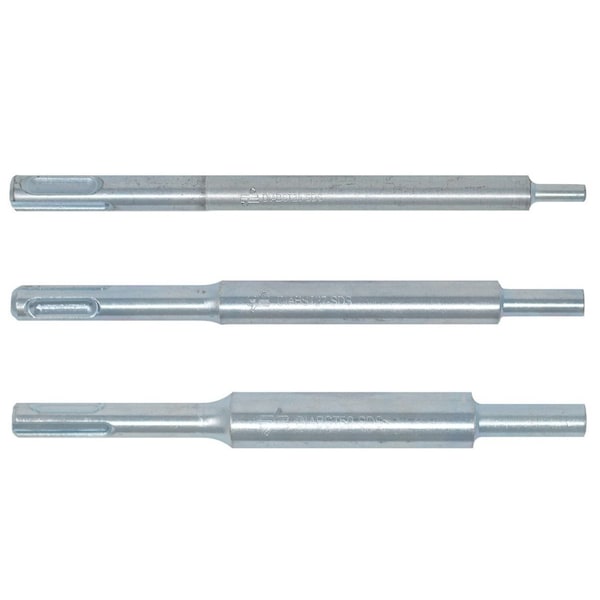

SDS+ Dropin Anchor Kit 1/2in, 3/8in, 1/4in Tools

Simpson Strong-Tie DIABSTSDS-KIT SDS+ Drop In Anchor Kit 1/2in, 3/8in, 1/4in ToolsThe Steel Strong-Wall portal frame connection kit is a complete solution for portal frame applications. The kit works with the Steel Strong-Wall shearwalls to achieve increased load values for portal frame systems. The kit includes everything needed to simplify the connection.Key FeaturesSimplifies installation to provide superior performanceStraps designed specifically for the Steel Strong-Wall used in portal applications#14 x 1in self-drilling screws to attach the straps to the Steel Strong-WallProduct Includes2 10-gauge SSWPS straps, 8 #14 x 1in self-drilling screws and installation instructionsInstallationPortal frame connection kit is required to achieve increased load values listed for portal frame system.Position header flush with exterior face of the Steel Strong-Wall shearwall.Install SSWPS straps on exterior face of the Steel Strong-Wall shearwall SSW using #14 x 1in self-drilling screws supplied.Shim between Steel Strong-Wall and header, if necessary. Maximum shim thickness between the Steel Strong-Wall and header is 7/8in.Use 1/4in x 3 1/2in Simpson Strong-Tie1/4 Strong-Drive1/4 SDS Heavy-Duty Connector screws supplied with SSW to attach SSW to header.Install SSWPS straps to exterior face of header using ten 0.148in x 2 1/2in minimum Length nails.Walls with 2x4 preattached studs may also be used in 2x6 wall framing. Install the wall flush to the exterior face of the framing and add furring to the opposite side.Walls may be installed with solid or multi-ply headers
