Shop All Single Acting Hydraulic Cylinders
Simplex

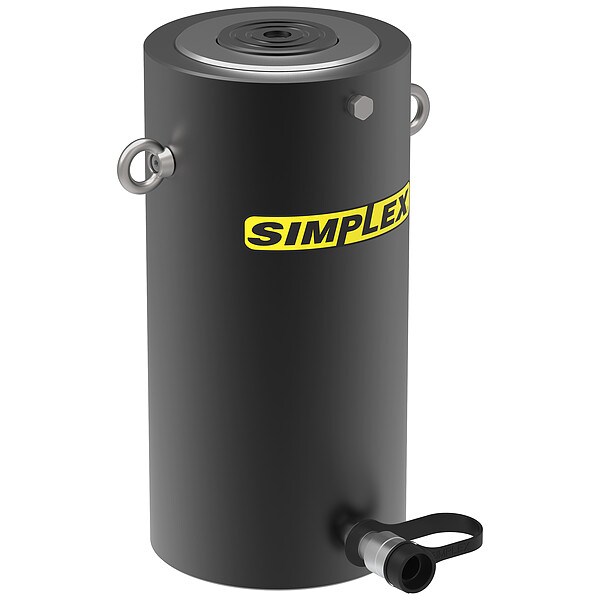

Hydraulic Ram, Nominal Capacity 158 ton

product price: $4,489.00
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Body Material Nitride
  • Outside Dia. 8.27 in
  • Cylinder Type High Tonnage Hydraulic
  • Stroke Length 11 13/16 in
  • Includes Hoses, Lifting Eyes, Power Pumps
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Outside Dia. 8.27 in
Stroke Length 11 13/16 in
Bore Dia. 6.3 in
Retracted Height 16.93 in
Nominal Stroke Length 11 13/16 in
Extended Height 28.72 in

Details

Body Material Nitride
Cylinder Type High Tonnage Hydraulic
Includes Hoses, Lifting Eyes, Power Pumps
Effective Push Area 31.16 sq in
Single Acting/Double Acting Single Acting
Oil Capacity Push 368.09 cu in
Max. Pressure 10,150 psi
Item Single-Acting, High Tonnage, Load Return
Nominal Capacity 160 ton
Weight 256 lb

Description

Single-Acting, High Tonnage, Load Return, Single Acting, High Tonnage Hydraulic, Nitride, Nominal Capacity 160 ton, Stroke Length 11 13/16 in, Nominal Stroke Length 11 13/16 in, Effective Push Area 31.16 sq in, Max. Pressure 10,150 psi, Oil Capacity Push 368.09 cu in, Retracted Height 16.93 in, Extended Height 28.72 in, Outside Dia. 8.27 in, Weight 256 lb, Includes Hoses, Lifting Eyes, Power Pumps, Bore Dia. 6.3 in
