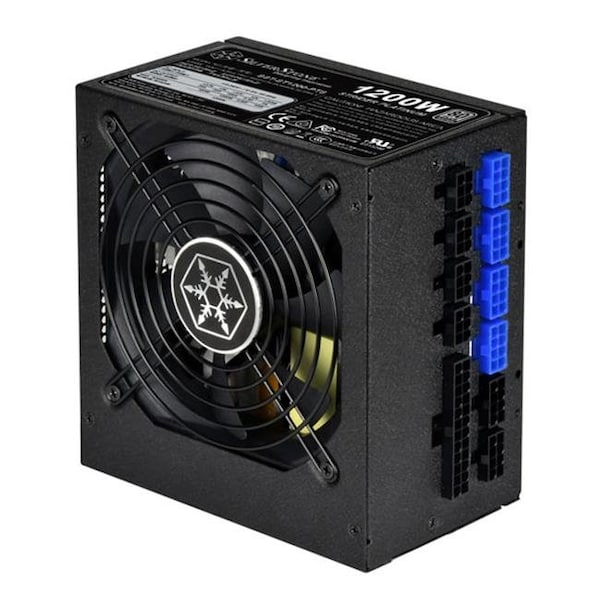

SilverStone Technologies ST1200-PTS 1200 watt Fully Modular 80 Plus Platinum Power Supply in Ultra Compact; Black

product price: $368.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Description

Features
  • Compact design with a depth of 140mm for easy integration
  • High efficiency with 80 PLUS Platinum certification
  • 100% modular cables
  • 24/7 continuous power output with 40C operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Built-in silent & durable HYB fan
  • FF122 magnetized fan filter included
Protection
  • Over power Protection
  • Over Current Protection
  • Over voltage Protection
  • Over Temperature Protection
  • Under voltage Protection
  • Short circuit Protection
Connectors
  • 1 x 24 / 20-Pin motherboard Connector("600 mm")
  • 1 x 8 / 4-Pin EPS / ATx 12V Connector("550 mm")
  • 1 x 8 / 4-Pin EPS / ATx 12V Connector("750 mm")
  • 8 x 8 / 6-Pin PCIE Connector("550 mm/150 mm" x4)
  • 8 x SATA Connector("600 mm /150 mm / 150 mm / 150 mm" x2)
  • 6 x 4-Pin Peripheral Connector("600 mm / 150 mm / 150 mm" x2)
  • 2 x 4-Pin Floppy Connector("150 mm" x2)
Other
  • GPU Support list
  • Compatible with ATx12V v2.4
Specifications
  • Color: Black(Lead-Free Paint)
  • Maximum DC Output: 1200 watt
  • Amps: 100A
  • Power Density: 664 watt per liter
  • Combined +3.3V & +5V: 120 watt
  • Combined +12V: 1200 watt
  • Input Voltage: 100V~264V
  • Input Frequency Range: 47Hz~63Hz
  • PFC: Active PFC(PF>0.9 at full load)
  • Efficiency: 89%~92% at 20%~100% loading
  • MTBF: 100,000 hours
  • Operating Temperature: 0°C ~ 40°C
  • Cooling System: Single 120 mm HYB Fan
  • Form Factor: ATx
  • Noise Level: 18 dBA minimum
  • Certification: 80 PLUS Platinum
  • Low Noise: 120 mm
  • Depth: 140 mm
  • Dimension: 5.91" x 3.39" x 5.51"
