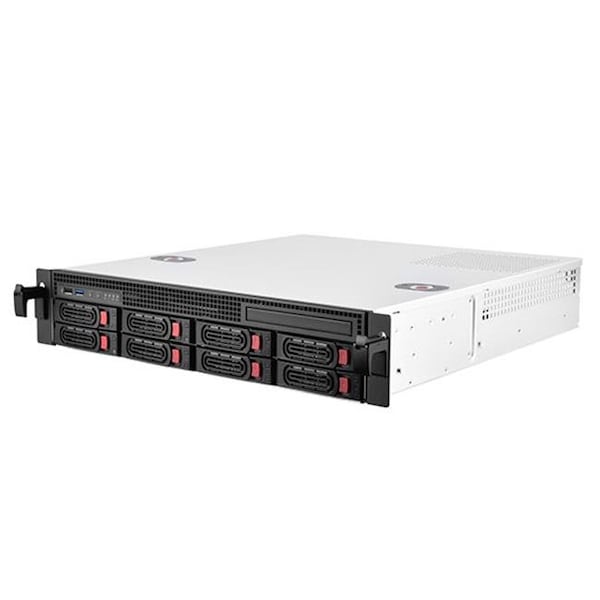

SilverStone Technologies RM21-308 3.5-2.5 in. 2U 8-Bay Micro-ATx Rackmount Server Chassis

product price: $662.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Description

Features
  • Backplane Support for 8 port SAS / SATA drives and 6 Gb/s Mini-SAS SFF-8087
  • Supports eight 2.5"/3.5" SAS/SATA HDD/SSD
  • Includes three 80 x 15mm PWM fans
  • Independent drive status LED
  • Supports Micro ATx motherboards
  • Supports four low profile PCI / PCIe slots
  • Auto lock handle for easy to fixed the 2U rackmount on the cabinet
Indicators
  • Chassis Power LED x 1- Blue
  • Chassis HDD Access x 1- Green
  • Chassis LAN LED x 2- Green
  • HDD Tray
  • HDD Tray HDD Power LED x 8- Yellow
  • HDD Tray HDD Access x 8- Blinking green
HDD Interface
  • SAS-1 / SAS-2 / SAS-3
  • SATA-1 / SATA-2 / SATA-3
Specifications
  • Chassis Form Factor: 2U
  • Mother Board: Micro ATx (9.6" x 9.6"), Mini-ITx (6.7" x 6.7")
  • Drive Bay External: 3.5" or 2.5" HDD/SSD hot-swap x 8
  • Drive Bay Internal: 2.5" x 2 (up to 15 mm), slim optical x 1 (up to 12.7 mm)
  • Cooling System: 80 x 15 mm ball bearing Fan x 3, 4000±10%RPM
  • Power Supply: 2U single or 2U redundant / PS2 (ATx) up to 160 mm deep and 86.3 mm height (not included)
  • Limitation of CPU Cooler: 68 mm
  • Power Connector on HDD Backplane: 4-Pin peripheral x 2
  • Expansion Slot: Low profile PCI / PCIe x 4
  • Front Iinout & Output Port: USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1
  • Front Buttons: Power On / Off, System reset
  • HDD Backplane: 8 Ports SAS / SATA to Mini-SAS SFF-8087 x 2
  • Main Metal Thickness: 1 mm
  • Capacity: 18.3 Ltr
  • Dimension: 16.93" x 3.48" x 18.9"
