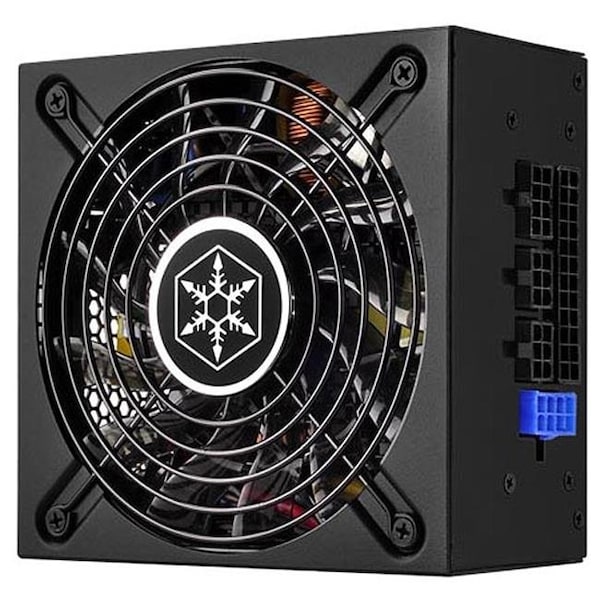

Silver Stone Technologies SX500-LG 500W Sfx-L Form Factor 80 Plus Gold Full Modular Lengthened Power Supply with 12V Single Rail
Mfr # SX500-LG
Zoro # G103970207
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Silverstone
- MFR # SX500-LG
- Zoro # G103970207
- UPC # 844761010683
- Country of Origin China
- Category Computer Enclosure Accessories
Description
We are pride ourselves in providing the highest level of standards in designing computer enclosures, power supplies, and accessories. Our pursuit for the first class aesthetic appeal is relentless and our devoted team is constantly searching for the best technologies that suit end-users with different needs and will make our products as technologically sound as they are very unique piece and beautiful.
For small form factor enthusiasts, the standard SFX power supply form factor has excellent combination of size, power, and affordability. At 100mm deep, however, the standard SFX PSU is also limited in fan size to 80mm. While advances in engineering and components have made modern high-end SFX PSUs quieter than ever, there is still inherent limitation with 80mm fans ability to dissipate heat at maximum loading conditions while maintaining satisfactory noise profile for users sensitive to higher-pitch sounds. With this in mind, SilverStone has released a lengthened variation of the SFX form factor called, SFX-L. With 30mm of added depth, a SFX-L power supply has enough room to fit a 120mm fan, thus its maximum load noise can be not only lower in intensity (via slower fan speed), but also lower in pitch (due to larger fan size).
Features- Silent running 120mm fan with intelligent semi-fanless operation (SX500-LG V1.0)
- Silent running 120mm fan with 18dBA minimum (SX500-LG V2.0)
- Support SFX-L form factor and ATX via included bracket
- High efficiency with 80 PLUS Gold certification
- 100% modular cables
- All cables made with flexible flat arrays
- 500W continuous power output at 40 operating temperature rated for 24/7 operation
- Class-leading single +12V rail with 40A
- Strict ñ3% voltage regulation and low ripple & noise
- Support dual PCI-E 8/6pin connectors
- Active PFC
- All Japanese capacitors
- Color: Black
- Max. DC Output: 500W
- Power density: 484W per liter
- combined +3.3, +5V: 105W
- combined +12V: 480W
- Input Voltage: 90V to 264V
- Input Frequency Range: 47Hz to 63Hz
- PFC: Ac
