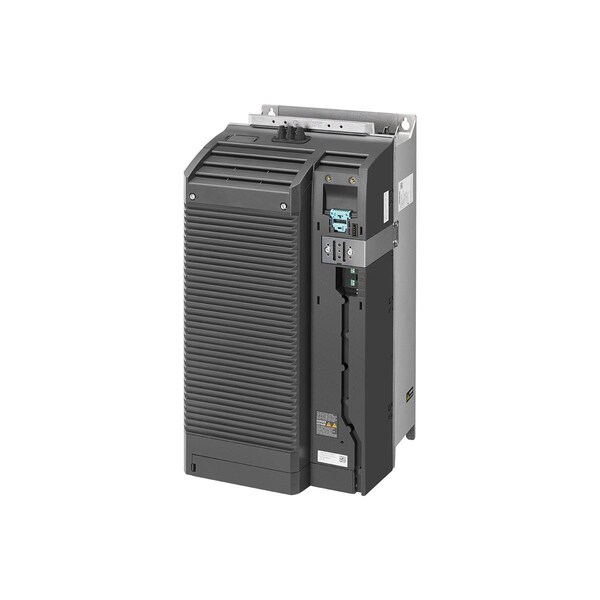

Siemens

Module

product price: $8,089.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Height 551 millimetre
  • Width 275 millimetre
  • Depth 237 millimetre
  • Output phases, number of 3
  • Design of frequency changer U converter
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 551 millimetre
Width 275 millimetre
Depth 237 millimetre

Details

Output phases, number of 3
Design of frequency changer U converter
Use in the industrial area permissible Yes
Relative symmetric mains frequency tolerance 5 percent
max. output power with linear load and rated output voltage 45 kilowatt
Max. output frequency 550 hertz
Input phase number 3
max. output power with square load at rated output voltage 55 kilowatt
Rated output current 110 ampere
Protection type IP IP20
Brake chopper integrated Yes
Power loss, static, current-independent [Pls] 32 watt
description of product type PM240-2
max. mains voltage 480 volt
Min. network voltage 380 volt
Rated output voltage 400 volt
Relative symmetric mains voltage tolerance 10 percent

Description

SINAMICS G120 POWER PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 45KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C HO OUTPUT LOW OVERLOAD: 55kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C LO 551 X 275 X 237 HXWXD, FSE PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
