Siemens

Module

product price: $3,189.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Depth 237 millimetre
  • Width 200 millimetre
  • Height 472 millimetre
  • Output phases, number of 3
  • Brake chopper integrated Yes
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Depth 237 millimetre
Width 200 millimetre
Height 472 millimetre

Details

Output phases, number of 3
Brake chopper integrated Yes
max. output power with square load at rated output voltage 19 kilowatt
Relative symmetric mains voltage tolerance 10 percent
Min. network voltage 380 volt
max. output power with linear load and rated output voltage 15 kilowatt
max. mains voltage 480 volt
description of product type PM240-2
Protection type IP IP20
Rated output voltage 400 volt
Input phase number 3
Design of frequency changer U converter
Power loss, static, current-independent [Pls] 27 watt
Use in the industrial area permissible No
Max. output frequency 550 hertz
Relative symmetric mains frequency tolerance 5 percent
Rated output current 38 ampere

Description

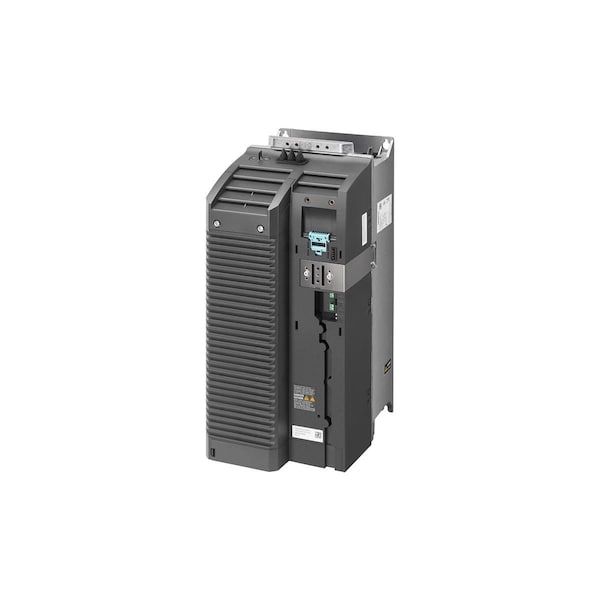

SINAMICS G120 POWER PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 15KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C HO OUTPUT LOW OVERLOAD: 18.5kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C LO 472 X 200 X 237 HXWXD, FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
