Shop All Programmable Logic Controllers
Siemens

Module

product price: $1,257.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Width 100 millimetre
  • Height 292 millimetre
  • Depth 165 millimetre
  • Max. output frequency 550 hertz
  • Brake chopper integrated Yes
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 100 millimetre
Height 292 millimetre
Depth 165 millimetre

Details

Max. output frequency 550 hertz
Brake chopper integrated Yes
Design of frequency changer U converter
Rated output current 10.2 ampere
Rated output voltage 400 volt
max. output power with linear load and rated output voltage 3 kilowatt
Relative symmetric mains voltage tolerance 10 percent
Min. network voltage 380 volt
max. output power with square load at rated output voltage 4 kilowatt
Output phases, number of 3
Relative symmetric mains frequency tolerance 5 percent
Protection type IP IP20
max. mains voltage 480 volt
Input phase number 3
Power loss, static, current-independent [Pls] 15 watt
description of product type PM240-2
Use in the industrial area permissible Yes

Description

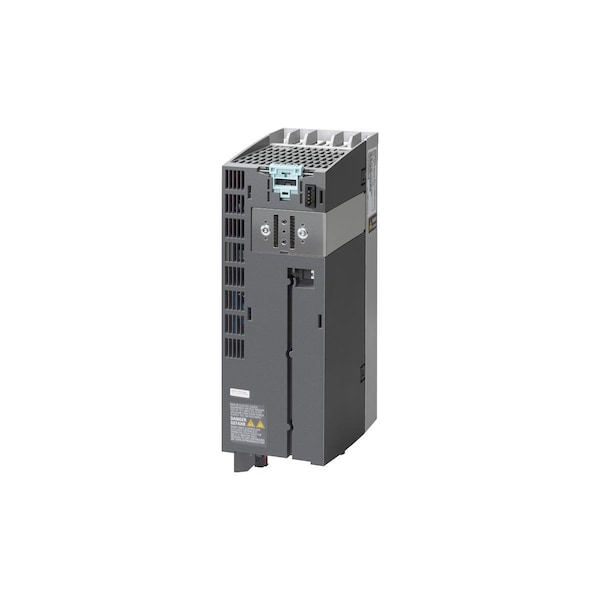

SINAMICS POWER PM240-2 WITH BUILT IN CL. A FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 3KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 4KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 HXWXD, FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
