Shop All Programmable Logic Controllers
Siemens

Module

product price: $710.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Height 196 millimetre
  • Depth 165 millimetre
  • Width 73 millimetre
  • Output phases, number of 3
  • Max. output frequency 550 hertz
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 196 millimetre
Depth 165 millimetre
Width 73 millimetre

Details

Output phases, number of 3
Max. output frequency 550 hertz
Design of frequency changer U converter
Min. network voltage 380 volt
Power loss, static, current-independent [Pls] 12 watt
Relative symmetric mains voltage tolerance 10 percent
Use in the industrial area permissible Yes
max. mains voltage 480 volt
Input phase number 3
Rated output voltage 400 volt
Rated output current 4.1 ampere
Protection type IP IP20
Relative symmetric mains frequency tolerance 5 percent
description of product type PM240-2
max. output power with square load at rated output voltage 2 kilowatt
Brake chopper integrated Yes
max. output power with linear load and rated output voltage 1 kilowatt

Description

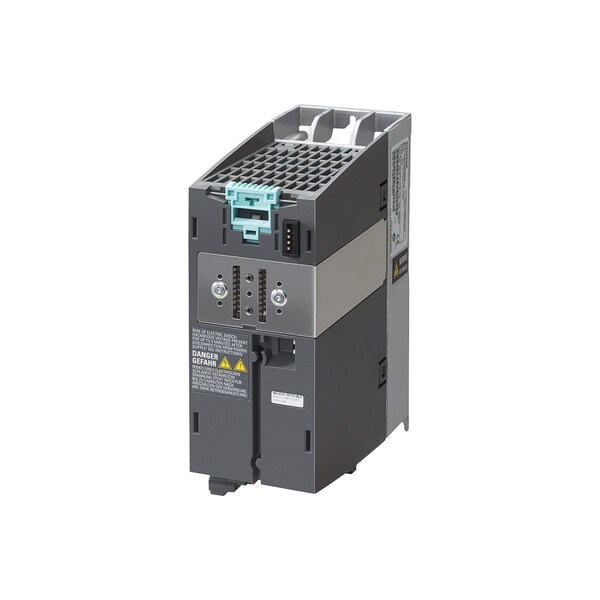

SINAMICS Power PM240-2 with integrated Class A filter with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 1.1 kW at 200% 3s, 150% 57s, 100% 240 s, Ambient temperature -10 to +50 DegC, power low overload: 1.5kW at 150% 3s, 110% 57s, 100% 240 s, Ambient temperature -10 to +40 DegC 196x 73x 165 HxWxD, FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
