Shop All Programmable Logic Controllers
Siemens

Module

product price: $545.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Depth 165 millimetre
  • Width 73 millimetre
  • Height 196 millimetre
  • Relative symmetric mains voltage tolerance 10 percent
  • Protection type IP IP20
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Depth 165 millimetre
Width 73 millimetre
Height 196 millimetre

Details

Relative symmetric mains voltage tolerance 10 percent
Protection type IP IP20
Output phases, number of 3
max. output power with square load at rated output voltage 1 kilowatt
Rated output current 3.1 ampere
Input phase number 3
max. mains voltage 480 volt
Design of frequency changer U converter
Rated output voltage 400 volt
Max. output frequency 550 hertz
Min. network voltage 380 volt
description of product type PM240-2
Relative symmetric mains frequency tolerance 5 percent
Power loss, static, current-independent [Pls] 12 watt
Brake chopper integrated Yes
Use in the industrial area permissible No
max. output power with linear load and rated output voltage 1 kilowatt

Description

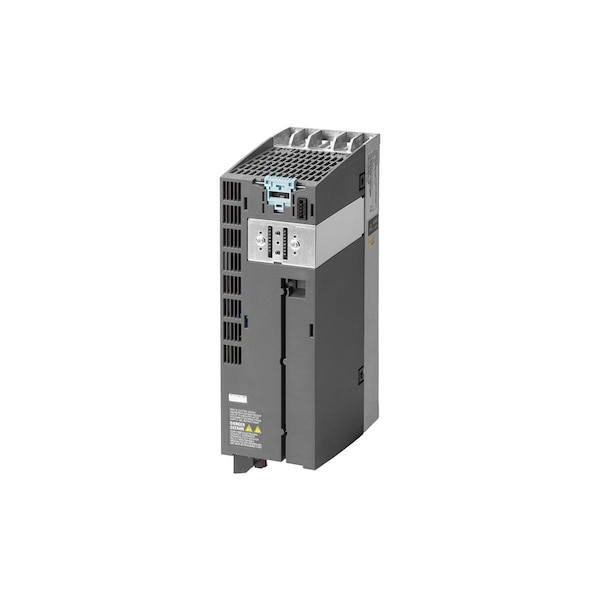

SINAMICS Power PM240-2 unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 0.75kW at 200% 3s, 150% 57s, 100% 240 s, Ambient temperature -10 to +50 DegC, power low overload: 1.1kW at 150% 3s, 110% 57s, 100% 240 s, Ambient temperature -10 to +40 DegC 196x 73x 165 HxWxD, FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
