Shop All Programmable Logic Controllers
Siemens

Module

product price: $501.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Height 196 millimetre
  • Width 73 millimetre
  • Depth 165 millimetre
  • Rated output current 2.2 ampere
  • Min. network voltage 380 volt
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 196 millimetre
Width 73 millimetre
Depth 165 millimetre

Details

Rated output current 2.2 ampere
Min. network voltage 380 volt
max. output power with linear load and rated output voltage 1 kilowatt
Brake chopper integrated Yes
Relative symmetric mains voltage tolerance 10 percent
Rated output voltage 400 volt
Input phase number 3
Use in the industrial area permissible No
Relative symmetric mains frequency tolerance 5 percent
Protection type IP IP20
max. output power with square load at rated output voltage 1 kilowatt
max. mains voltage 480 volt
Max. output frequency 550 hertz
Design of frequency changer U converter
Power loss, static, current-independent [Pls] 12 watt
Output phases, number of 3

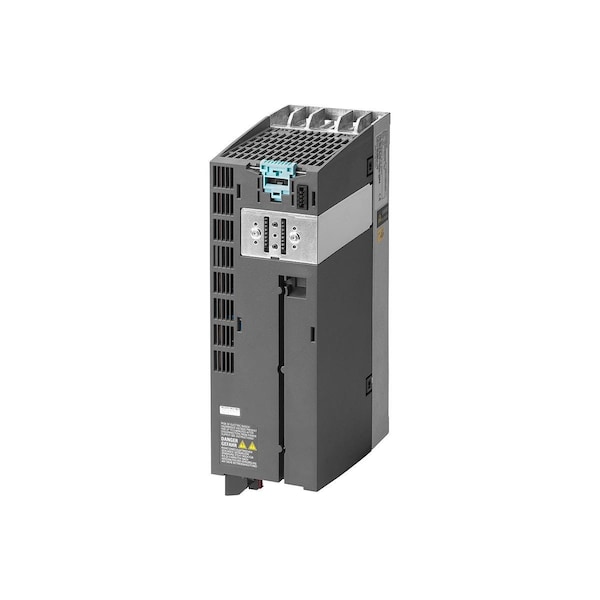

description of product type PM240-2

Description

SINAMICS Power PM240-2 unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 0.55kW at 200% 3s, 150% 57s, 100% 240 s, Ambient temperature -10 to +50 DegC, power low overload: 0.75kW at 150% 3s, 110% 57s, 100% 240 s, Ambient temperature -10 to +40 DegC 196x 73x 165 HxWxD, FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
