Siemens

Module

product price: $669.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Depth 165 millimetre
  • Height 292 millimetre
  • Width 100 millimetre
  • max. mains voltage 240 volt
  • max. rated operating current Ie 24 ampere
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Depth 165 millimetre
Height 292 millimetre
Width 100 millimetre

Details

max. mains voltage 240 volt
max. rated operating current Ie 24 ampere
Rated output voltage 230 volt
Rated output current 10.4 ampere
Base load current at low overload 24 ampere
max. output power with linear load and rated output voltage 2 kilowatt
Relative symmetric mains voltage tolerance 10 percent
Output phases, number of 3
Max. output frequency 550 hertz
Base load current at high overload 20.9 ampere
Power loss, static, current-independent [Pls] 15 watt
Input phase number 1
Protection type IP IP20
Design of frequency changer U converter
Use in the industrial area permissible No
Brake chopper integrated Yes
max. output power with square load at rated output voltage 2 kilowatt
Min. network voltage 200 volt
description of product type PM240-2
Relative symmetric mains frequency tolerance 5 percent

Description

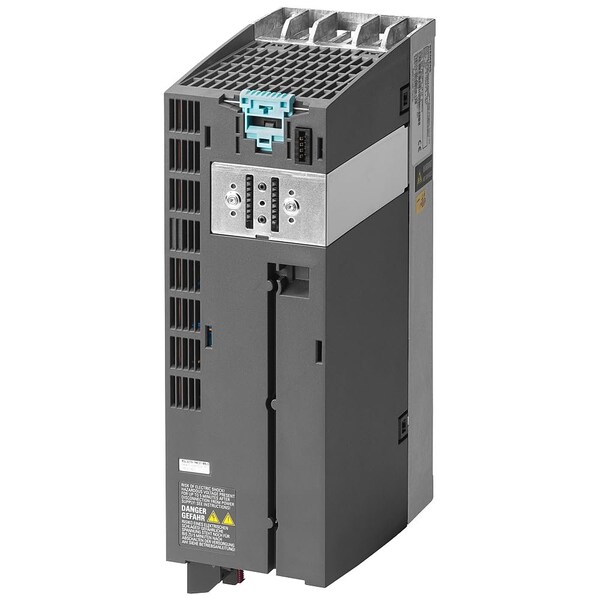

SINAMICS POWER PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 1/3AC200-240V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 1,5KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 2,2KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 HXWXD, FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6
