Shop All Programmable Logic Controllers
Siemens

Module

product price: $484.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Depth 165 millimetre
  • Width 73 millimetre
  • Height 196 millimetre
  • Max. output frequency 550 hertz
  • Relative symmetric mains frequency tolerance 5 percent
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Depth 165 millimetre
Width 73 millimetre
Height 196 millimetre

Details

Max. output frequency 550 hertz
Relative symmetric mains frequency tolerance 5 percent
Design of frequency changer U converter
Brake chopper integrated Yes
Power loss, static, current-independent [Pls] 12 watt
Protection type IP IP20
Min. network voltage 200 volt
max. output power with linear load and rated output voltage 0 kilowatt
description of product type PM240-2
Use in the industrial area permissible Yes
Input phase number 1
Output phases, number of 3
Base load current at high overload 6.6 ampere
max. rated operating current Ie 7.5 ampere
Rated output current 3.2 ampere
max. output power with square load at rated output voltage 1 kilowatt
Base load current at low overload 7.5 ampere
max. mains voltage 240 volt
Rated output voltage 230 volt
Relative symmetric mains voltage tolerance 10 percent

Description

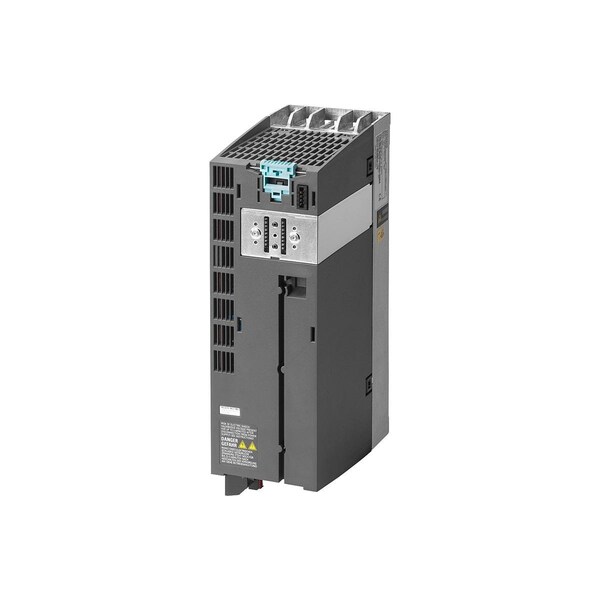

SINAMICS Power PM240-2 with integrated Class A filter with integrated braking chopper 200-240 V 1/3AC+10/-10% 47-63Hz Power high overload: 0.37kW at 200% 3s, 150% 57s, 100% 240 s, Ambient temperature -10 to +50 DegC, power low overload: 0.55kW at 150% 3s, 110% 57s, 100% 240S Ambient temperature -10 to +40 DegC 196x 73x 165 HxWxD, FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6
