Siemens

Module

product price: $985.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Height 196 millimetre
  • Width 73 millimetre
  • Depth 165 millimetre
  • Rated output current 7.7 ampere
  • Design of frequency changer U converter
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Height 196 millimetre
Width 73 millimetre
Depth 165 millimetre

Details

Rated output current 7.7 ampere
Design of frequency changer U converter
Input phase number 3
Rated output voltage 400 volt
max. output power with linear load and rated output voltage 2 kilowatt
Min. network voltage 380 volt
Protection type IP IP20
Use in the industrial area permissible Yes
max. mains voltage 480 volt
description of product type PM230
Max. output frequency 550 hertz
max. output power with square load at rated output voltage 3 kilowatt
Relative symmetric mains voltage tolerance 10 percent
Power loss, static, current-independent [Pls] 11 watt
Relative symmetric mains frequency tolerance 5 percent
Brake chopper integrated No
Output phases, number of 3

Description

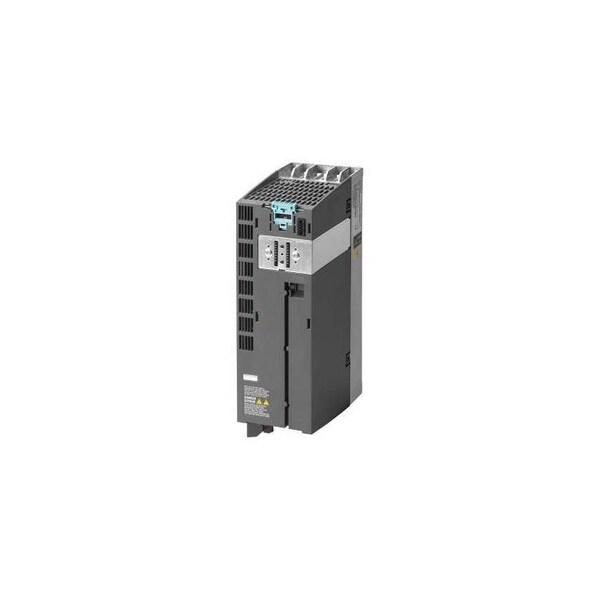

SINAMICS G120 Power PM230 with integrated Class A filter Degree of protection IP20 380-480 V 3 AC +10/-10% 47-63 Hz Power low overload: 3kW at 150% 3s, 110% 57s, 100% 240 s, Ambient temperature 0 to +40 DegC LO 196x 73x 165 HxWxD, FSA without Control Unit and operating unit released for CU240B/E-2 and CU230P-2 Firmware version V4.4 or higher
