Siemens

Module

product price: $1,824.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Width 35 millimetre
  • Height 147 millimetre
  • Depth 129 millimetre
  • Number of analog inputs 8
  • Manufacturer product family S7-1500
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Width 35 millimetre
Height 147 millimetre
Depth 129 millimetre

Details

Number of analog inputs 8
Manufacturer product family S7-1500
Explosion protection categories for gases ATEX gas-ex-protection, Cat. 3
Input signal can be configured Yes
Manufacturer product root Analog module input
Input, resistance present Yes
Input, resistance thermometer present Yes
Input, current present No
Input, voltage present Yes
Power loss, static, current-independent [Pls] 2 watt
Resolution of the analog inputs 21 bit
Corresponding operating medium (Ex ia) No
description of product type AI 8xU/R/RTD/TC HF
Number of analog outputs 0
Corresponding operating medium (Ex ib) No
Input, thermoelement present Yes
analog inputs, configurable Yes

Description

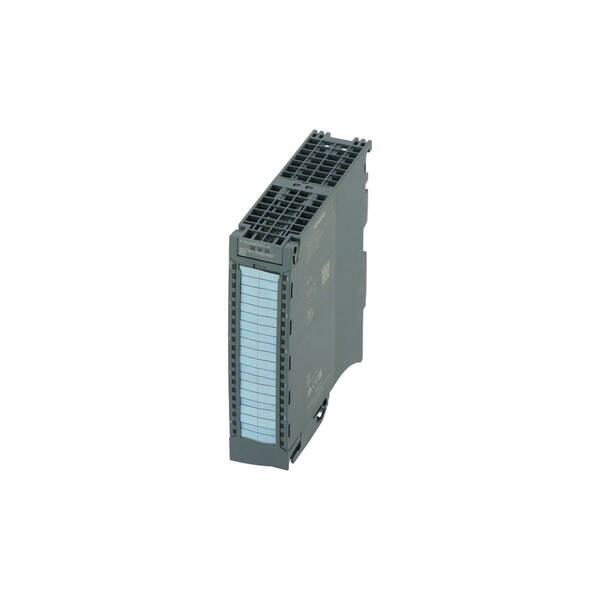

SIMATIC S7-1500 analog input AI 8xU/R/RTD/TC HF, 16 bit resolution, up to 21 bit Resolution at RT and TC, accuracy 0.1%, 8 channels in groups of 1, common mode voltage: 30 V AC/60 V DC, Diagnostics, Hardware interrupts Scalable temperature measuring range, thermocouple type C, Calibrate in RUN, Delivery including infeed element, shield bracket and shield terminal: Front connector screw terminals or push-in to be ordered separately
