Shop All Actuators and Damper Motors
Siemens

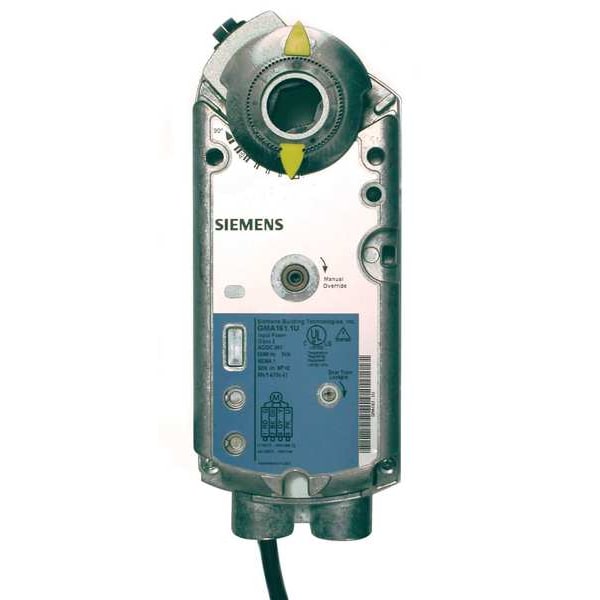

Electric Actuator, -25 to 130F, 90 sec.
Mfr # GMA226.1U
Zoro # G3403574
Free Shipping & Returns
$254.58
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Mounting Type Direct Mount
- Spring Return Spring Return
- Signal Type On/Off
- Torque 62 in-lb
- Voltage 120V AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Siemens
- MFR # GMA226.1U
- Zoro # G3403574
- Country of Origin United States
- Category Actuators and Damper Motors
Dimensions
Width | 3 1/4 in |
Height | 8 3/4 in |
Depth | 2 2/3 in |
Overall Width | 3 1/4 in |
For Shaft Height | 1/2 in |
Overall Height | 8 3/8 in |
Overall Depth | 2 3/8 in |
For Shaft Diameter | 3/4 in |
For Shaft Width | 1/2 in |
Description
Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 62 in-lb, Input Voltage 120V AC, Output Signal 0 to 10V DC, Contact Form SPDT, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP54, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Self-Centering Shaft Coupling, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
