Shop All Actuators and Damper Motors
Siemens

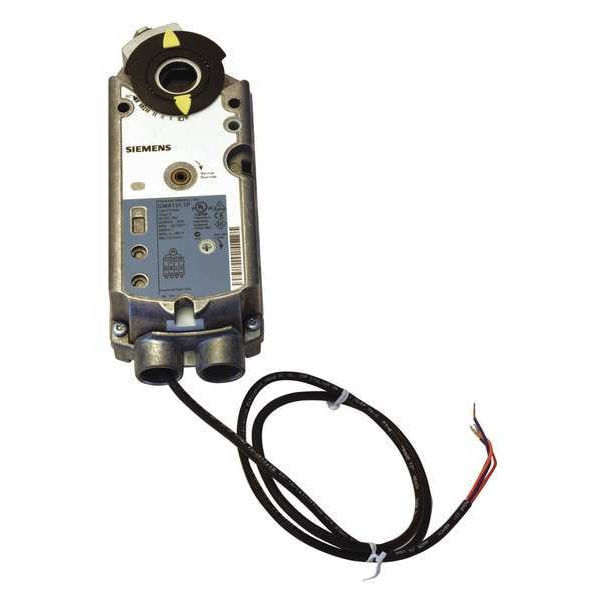

Electric Actuator, 24VAC/DC, 62 in.-lb.
Mfr # GMA131.1P
Zoro # G2103477
Free Shipping & Returns
$220.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Mounting Type Direct Mount
- Spring Return Spring Return
- Signal Type Floating Point
- Torque 62 in-lb
- Voltage 24V AC/DC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Siemens
- MFR # GMA131.1P
- Zoro # G2103477
- Country of Origin United States
- Category Actuators and Damper Motors
Dimensions
Width | 3 1/4 in |
Height | 8 3/8 in |
Depth | 2 2/3 in |
Overall Width | 3 1/4 in |
Overall Height | 8 3/8 in |
Overall Depth | 2 3/8 in |
For Shaft Width | 1/2 in |
For Shaft Height | 1/2 in |
For Shaft Diameter | 3/4 in |
Description
Actuator, Valve Application Damper, Signal Type Floating Point, Rated Torque 62 in-lb, Input Voltage 19.2 to 28.8V AC/DC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP54, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Self-Centering Shaft Coupling, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
