Service Caster

8 Inch Kingpinless Phenolic Wheel Caster Swivel Locks 2 Rigid SCC, 2PK


product price: $375.99
/pk 2, $188.00/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wheel Dia. 8
  • Wheel Width 2
  • Plate Caster Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
  • Finish Bright Zinc Plated Finish
  • Material Phenolic
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 8
Wheel Width 2
Mounting Height 9-1/2"
Plate Size 4" x 4-1/2"
Size 8" x 2"
Bolt Size 3/8" (hardware not included)

Details

Plate Caster Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Finish Bright Zinc Plated Finish
Material Phenolic
Series Series#KP30
Caster Temp. Range -50 degrees F to 250 degrees F
Capacity (Lb.) 5000
Caster Mounting Type Top Plate
Caster Swivel Lock Type 2 Bolt On Swivel Locks
Durometer 90D
Type (2) Swivel casters w/bolt on swivel locks & (2) rigid casters
Bearing Type Roller Bearing

Description

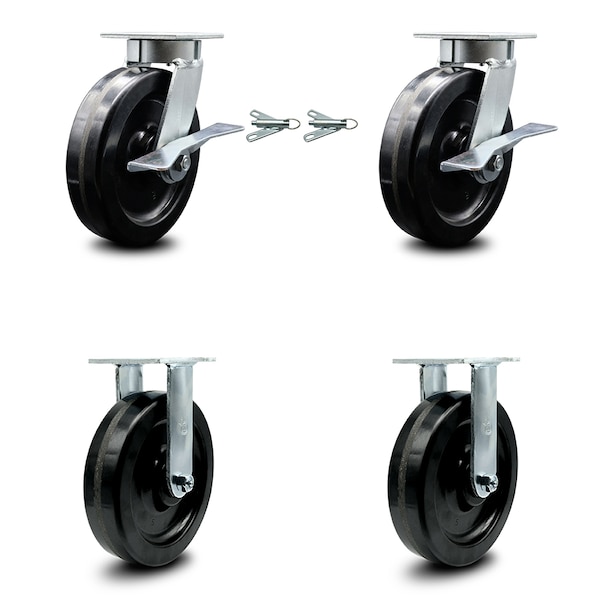

Listing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with bolt on swivel locks and two (2) rigid casters, with 8" diameter by 2" wide phenolic wheels capable of supporting a total weight of 5,000 lbs. (1,250 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 phenolic wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, are also spark proof. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
