Service Caster

8 Inch Heavy Duty High Temp Phenolic Swivel Caster Set with Brakes SCC, 4PK


product price: $2,042.99
/pk 4, $510.75/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wheel Dia. 8
  • Wheel Width 3
  • Caster Temp. Range 475 degrees F continuous usage and 525 degrees F intermittent usage
  • Series Series #92
  • Mounting Height 10-1/2"
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 8
Wheel Width 3
Mounting Height 10-1/2"
Plate Size 5-1/4" x 7-1/4"
Bolt Size 1/2" (hardware not included)
Size 8" x 3"

Details

Caster Temp. Range 475 degrees F continuous usage and 525 degrees F intermittent usage
Series Series #92
Caster Swivel Lock Type Side lock brake
Material High Temperature Phenolic
Finish Bright Zinc Plated Finish
Caster Mounting Type Top Plate
Type (4) swivel casters w/side lock brakes
Capacity (Lb.) 10000
Plate Caster Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Durometer 90D
Features Side lock brake
Bearing Type Roller Bearing

Description

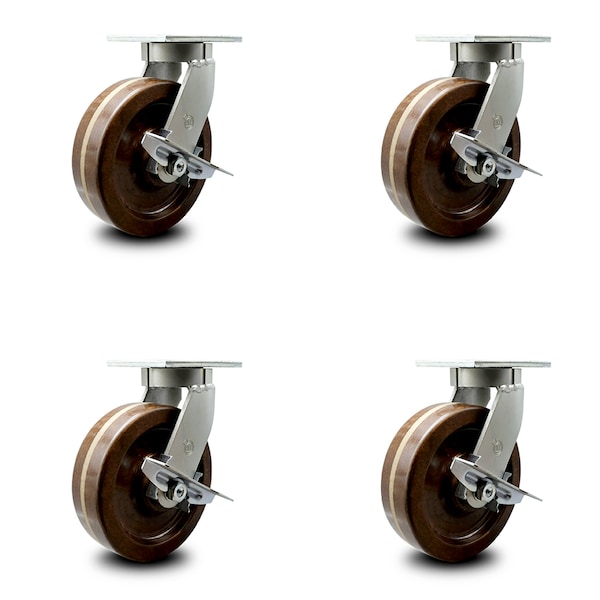

Listing is for four (4) Service Caster Series #92 swivel casters, four (4) swivel casters with side lock brakes, 8" diameter by 3" wide brown high temperature phenolic wheel. Supports a total weight of 10000 pounds (lbs) per caster. When searching for a reliable and durable solution for extra heavy duty projects in high temperatures, consider Service Caster’s Series 92 top plate high temp phenolic casters. The Service Caster Series #92 is ideal for autoclaves, bakery ovens and powder coating facilities. The phenolic wheels roll easier and quieter than comparable steel wheels, and are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Additionally, they are resistant to water, oil, grease, and are non-metallic, providing spark proof protection. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1⁄2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
