Service Caster

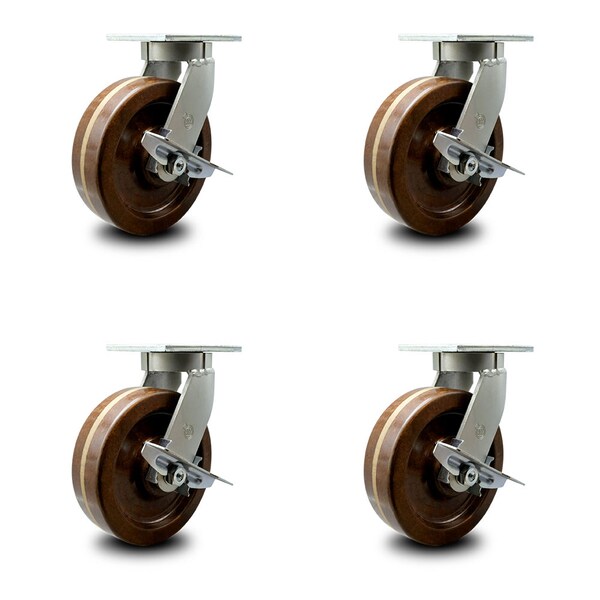

8 Inch Heavy Duty High Temp Phenolic Caster Brakes 2 Swivel Locks SCC, 4PK


product price: $2,082.99
/pk 4, $520.75/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wheel Dia. 8
  • Wheel Width 3
  • Material High Temperature Phenolic
  • Caster Temp. Range 475 degrees F to 525 degrees F
  • Durometer 90D
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

  • Brand Service Caster
  • MFR # SCC-KP92S830-PHRHT-SLB-BSL-2-SLB-2
  • Zoro # G305440386
  • UPC #
    670533888088
  • Country of Origin United States
  • Category Plate Casters

Dimensions

Wheel Dia. 8
Wheel Width 3
Mounting Height 10-1/2"
Plate Size 5-1/4" x 7-1/4"
Size 8" x 3"
Bolt Size 1/2" (hardware not included)

Details

Material High Temperature Phenolic
Caster Temp. Range 475 degrees F to 525 degrees F
Durometer 90D
Capacity (Lb.) 2500
Caster Swivel Lock Type 4 side lock brakes & 2 bolt on swivel locks
Finish Bright Zinc Plated Finish
Features 4 Side lock brakes & 2 Bolt on swivel lock
Caster Mounting Type Top Plate
Series Series #92
Type (2) Swivel casters w/side lock brakes and bolt on swivel locks & (2) swivel casters w/side lock brakes
Plate Caster Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Bearing Type Roller Bearing

Description

Listing is for a set of four (4) Service Caster Series #92 casters with 8" diameter, 3" wide brown high temperature phenolic wheels. Set includes four (4) swivel casters, two (2) fitted with side locking brakes and bolt on swivel locks, two (2) fitted with side locking brakes. Supports 10000 total pounds (lbs) at 2500 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for autoclaves, bakery ovens and powder coating facilities. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1⁄2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
