Service Caster

5 Inch Rubber on Cast Iron Swivel Caster Set with Roller Bearings 2 Brakes


product price: $220.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wheel Dia. 5
  • Wheel Width 2
  • Plate Caster Bolt Hole Pattern 1-3/4" x 2-7/8" to 3"
  • Durometer 80A
  • Finish Bright Zinc Plated Finish
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 5
Wheel Width 2
Mounting Height 6-1/8"
Plate Size 2-3/8" x 3-5/8"
Bolt Size 5/16" (hardware not included)
Size 5" x 2"

Details

Plate Caster Bolt Hole Pattern 1-3/4" x 2-7/8" to 3"
Durometer 80A
Finish Bright Zinc Plated Finish
Series Series #20
Material Rubber on Steel
Type (2) Swivel casters & (2) Swivel casters w/top lock brakes
Caster Temp. Range -40 degrees F to 180 degrees F
Caster Mounting Type Top Plate
Capacity (Lb.) 1600
Bearing Type Roller Bearing

Description

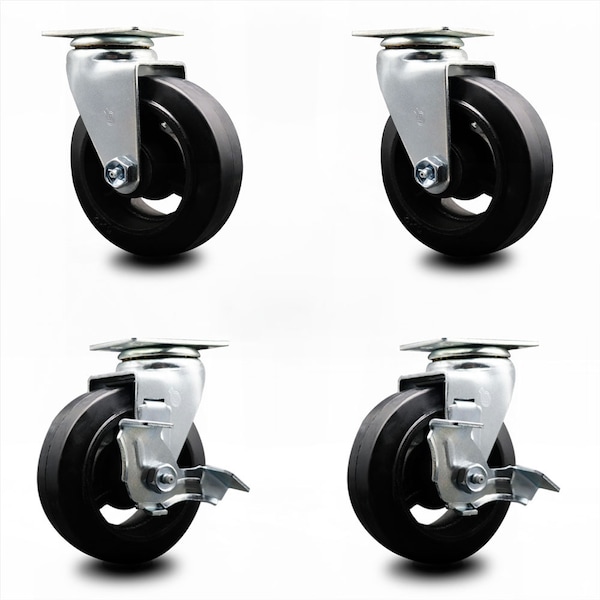

Listing is for a set of four (4) Service Caster Series #20 swivel casters, two (2) with top locking brakes, with 5" diameter by 2" wide rubber on cast iron wheel and roller bearings capable of supporting a total weight of 1,400 lbs. (400 lbs./caster). When searching for a reliable and durable solution for light and medium duty projects, consider Service Caster’s Series 20 top plate rubber on metal casters. The Service Caster Series #20 is ideal for material handling, carts, equipment, and shop projects. The rubber tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 20, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
