Service Caster

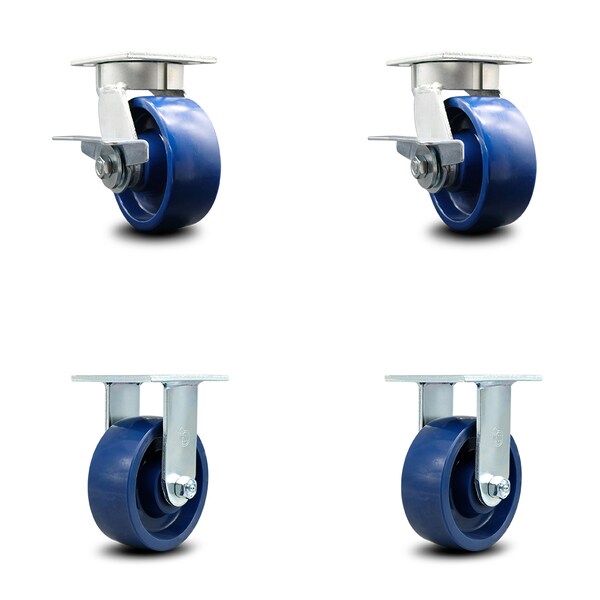

5 Inch Kingpinless Solid Poly Wheel Caster Brakes 2 Rigid, 2PK


product price: $385.99
/pk 2, $193.00/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wheel Dia. 5
  • Wheel Width 2
  • Mounting Height 6-1/2"
  • Caster Temp. Range -50 degrees F to 180 degrees F
  • Series Series#KP30
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 5
Wheel Width 2
Mounting Height 6-1/2"
Plate Size 4" x 4-1/2"
Size 5" x 2"
Bolt Size 3/8" (hardware not included)

Details

Caster Temp. Range -50 degrees F to 180 degrees F
Series Series#KP30
Caster Mounting Type Top Plate
Plate Caster Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Material Solid Polyurethane
Durometer 60D
Type (2) swivel casters w/side lock brakes & (2) rigid casters
Caster Swivel Lock Type 2 Top Lock Brakes
Finish Bright Zinc Plated Finish
Capacity (Lb.) 4000
Bearing Type Roller Bearing

Description

Listing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with side lock brakes and two (2) rigid casters, with 5" diameter by 2" wide solid polyurethane wheels capable of supporting a total weight of 4,000 lbs. (1,000 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 solid polyurethane wheel casters. The Service Caster Series KP30 features a non-marking, non-marring polyurethane wheel. Molded as one solid piece, this wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
