Service Caster

5 Inch Kingpinless Poly on Aluminum Wheel Caster Swivel Locks 2 Brakes SCC, 2PK


product price: $569.99
/pk 2, $285.00/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wheel Dia. 5
  • Wheel Width 2
  • Caster Temp. Range -45 degrees F to 180 degrees F
  • Series Series#KP30
  • Plate Size 4" x 4-1/2"
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 5
Wheel Width 2
Plate Size 4" x 4-1/2"
Mounting Height 6-1/2"
Bolt Size 3/8" (hardware not included)
Size 5" x 2"

Details

Caster Temp. Range -45 degrees F to 180 degrees F
Series Series#KP30
Durometer 95A
Caster Swivel Lock Type 2 Bolt On Swivel Locks & 2 Top Lock Brakes
Finish Bright Zinc Plated Finish
Type (2) Swivel casters w/bolt on swivel locks & (2) swivel casters w/side lock brakes
Material Polyurethane on Aluminum
Caster Mounting Type Top Plate
Capacity (Lb.) 3600
Plate Caster Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Bearing Type Roller Bearing

Description

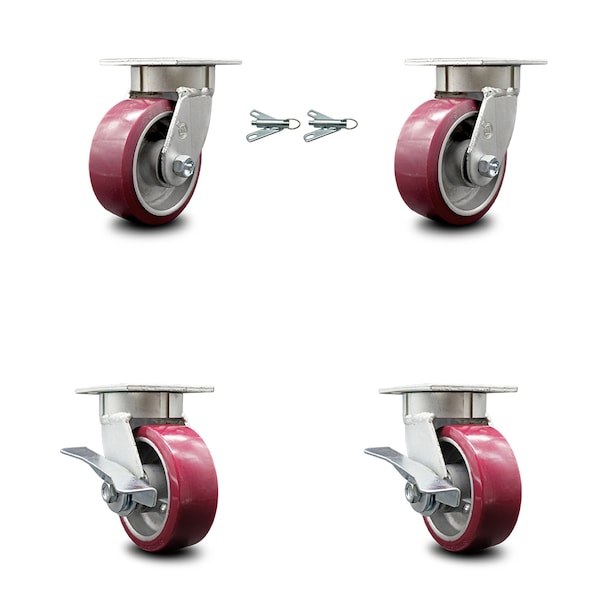

Listing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with bolt on swivel locks and two (2) swivel casters with side lock brakes, with 5" diameter by 2" wide polyurethane on aluminum wheels capable of supporting a total weight of 3,600 lbs. (900 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 polyurethane aluminum wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
