Service Caster

5 Inch Kingpinless Poly on Aluminum Caster Brakes/Swivel Locks 2 Rigid SCC, 2PK


product price: $447.99
/pk 2, $224.00/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wheel Dia. 5
  • Wheel Width 2
  • Plate Caster Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
  • Capacity (Lb.) 3600
  • Durometer 95A
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 5
Wheel Width 2
Plate Size 4" x 4-1/2"
Mounting Height 6-1/2"
Bolt Size 3/8" (hardware not included)
Size 5" x 2"

Details

Plate Caster Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Capacity (Lb.) 3600
Durometer 95A
Caster Temp. Range -45 degrees F to 180 degrees F
Material Polyurethane on Aluminum
Series Series#KP30
Type (2) Swivel caster w/side lock brake & bolt on swivel lock & (2) rigid casters
Caster Mounting Type Top Plate
Finish Bright Zinc Plated Finish
Caster Swivel Lock Type 2 Top Lock Brakes & 2 Bolt on Swivel Locks
Bearing Type Roller Bearing

Description

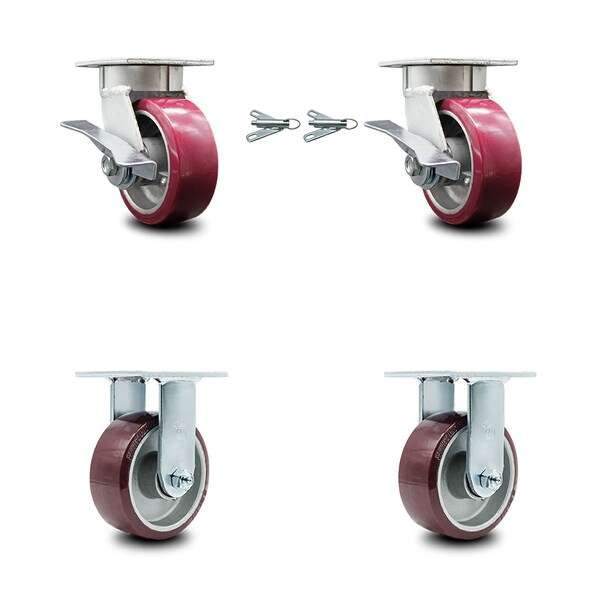

Listing is for a set of four (4) Service Caster Series #KP30 casters, two (2) swivel casters with side lock brakes & bolt on swivel locks and two (2) rigid casters, with 5" diameter by 2" wide polyurethane on aluminum wheels capable of supporting a total weight of 3,600 lbs. (900 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 polyurethane aluminum wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
