3 Inch Semi Steel Swivel Top Plate Caster Set with 2 Brakes 2 Rigid SCC


product price: $179.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wheel Dia. 3
  • Wheel Width 1.5
  • Plate Size 2-1/2" x 3-5/8"
  • Features 2 casters with top lock brakes
  • Mounting Height 4-1/8"
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 3
Wheel Width 1.5
Plate Size 2-1/2" x 3-5/8"
Mounting Height 4-1/8"
Bolt Size 5/16" (hardware not included)
Size 3" x 1-1/2"

Details

Features 2 casters with top lock brakes
Caster Swivel Lock Type 2 casters with top lock brakes
Type (2) swivel casters w/top lock brakes & (2) rigid casters
Capacity (Lb.) 300
Material Semi Steel Cast Iron
Caster Temp. Range -45 degrees F to 600 degrees F
Plate Caster Bolt Hole Pattern 1-3/4" x 2-7/8" to 3"
Series Series #20
Finish Bright Zinc Plated Finish
Caster Mounting Type Top Plate
Bearing Type Roller Bearing

Description

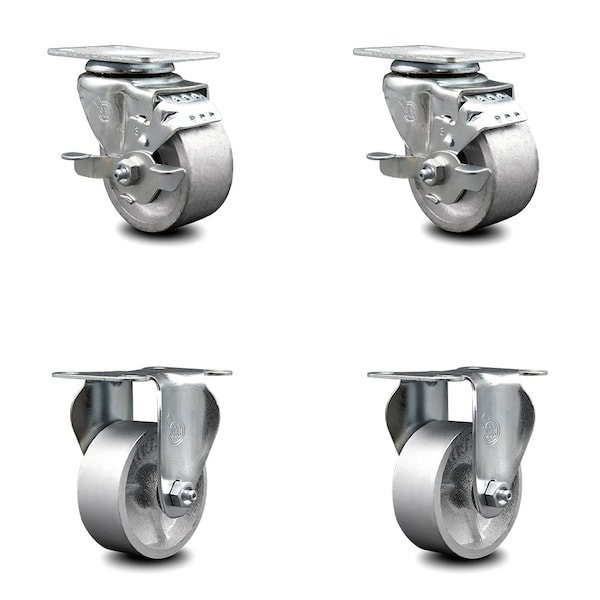

Listing is for a a set of four (4) Service Caster Series #20 casters, two (2) rigid and two (2) swivel casters with top locking brakes, with 3" diameter by 1-1/2" wide semi steel cast iron wheels capable of supporting a total weight of 1,200 lbs. (300 lbs./caster).When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
