Service Caster

10 Inch Heavy Duty Green Poly on Cast Iron Wheel Swivel Caster with Swivel Lock


product price: $278.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Wheel Dia. 10
  • Wheel Width 3
  • Caster Mounting Type Top Plate
  • Material Polyurethane Tread on Metal Core
  • Plate Size 5-1/4" x 7-1/4"
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Wheel Dia. 10
Wheel Width 3
Plate Size 5-1/4" x 7-1/4"
Mounting Height 12-1/2"
Bolt Size 1/2" (hardware not included)
Size 10" x 3"

Details

Caster Mounting Type Top Plate
Material Polyurethane Tread on Metal Core
Capacity (Lb.) 3000
Plate Caster Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Caster Swivel Lock Type Bolt on swivel lock
Features Bolt on swivel lock
Series Series #92
Durometer 95A
Finish Bright Zinc Plated Finish
Caster Temp. Range -40 degrees F to 180 degrees F
Type Swivel caster w/bolt on swivel lock
Bearing Type Roller Bearing

Description

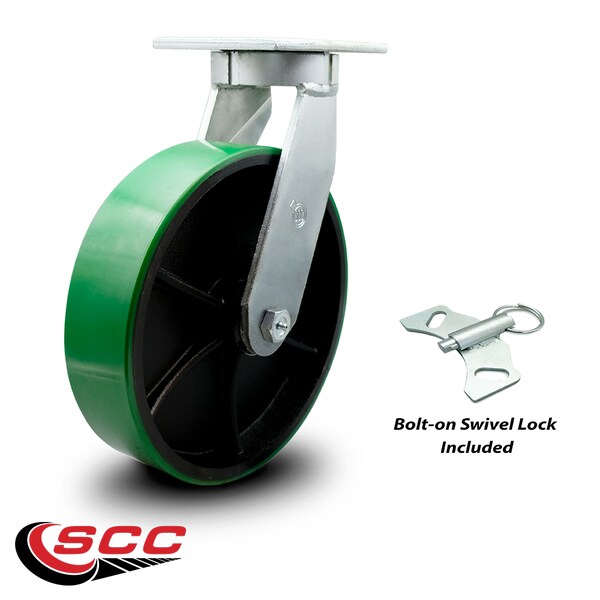

Listing is for one (1) Service Caster Series #92 swivel caster with a bolt on swivel lock and a 10" diameter, 3" wide green polyurethane tread on metal core wheel. Supports 3000 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate polyurethane on metal wheel casters. The Service Caster Series #92 is ideal for material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1⁄2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
