  9. Cavity Pump, 1/2" Discharge, NPT, 23.04 gph
Shop All Progressive Cavity Pumps
Seepex

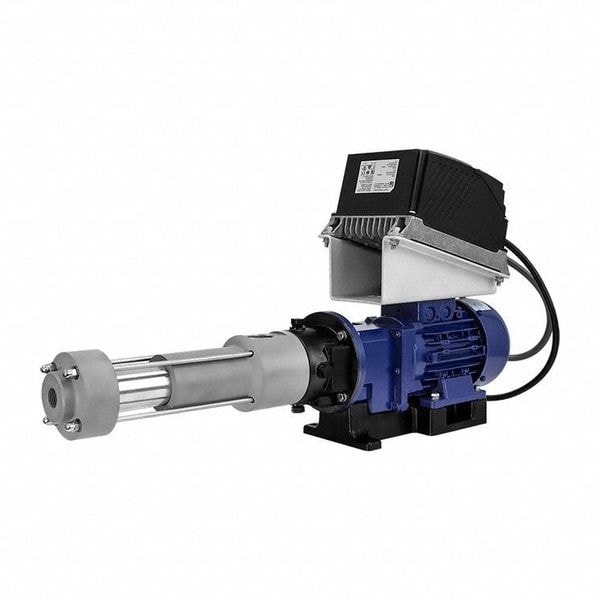

Cavity Pump, 1/2" Discharge, NPT, 23.04 gph

product price: $7,132.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Seal Material Carbon, Ceramic, Stainless Steel, Viton
  • Housing Material Stainless Steel
  • Frequency 60 Hz
  • Flow Rate (Maximum) 23.04 gph
  • Phase Single
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Solid Diameter (Maximum) 0.125 in
Discharge Connection Size 1/2 in
Intake Connection Size 1 in

Details

Item Cavity Pump
Seal Material Carbon, Ceramic, Stainless Steel, Viton
Housing Material Stainless Steel
Frequency 60 Hz
Flow Rate (Maximum) 23.04 gph
Phase Single
Operating Pressure (Maximum) 280 psi
Flow Rate (Minimum) 0.29 gph
Stator Movement Rigid
Media Temperature (Minimum) 35 Degrees F
Rotor Material Stainless Steel
Viscosity (Maximum) 5,000 cps
Nameplate Voltage 120 V AC 1ph
Discharge Connection Type NPT
Horsepower (Maximum) 3/4 hp
Stator Material Viton
Intake Connection Type NPT
Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline
Media Temperature (Maximum) 140 Degrees F
Pump Operation Type Motorized

Description

Cavity Pump, Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Discharge Connection Size 1/2 in, Discharge Connection Type NPT, Flow Rate (Maximum) 23.04 gph, Flow Rate (Minimum) 0.29 gph, Horsepower (Maximum) 3/4 hp, Housing Material Stainless Steel, Intake Connection Size 1 in, Intake Connection Type NPT, Media Temperature (Maximum) 140 Degrees F, Media Temperature (Minimum) 35 Degrees F, Nameplate Voltage 120 V AC 1ph
