Sealmaster

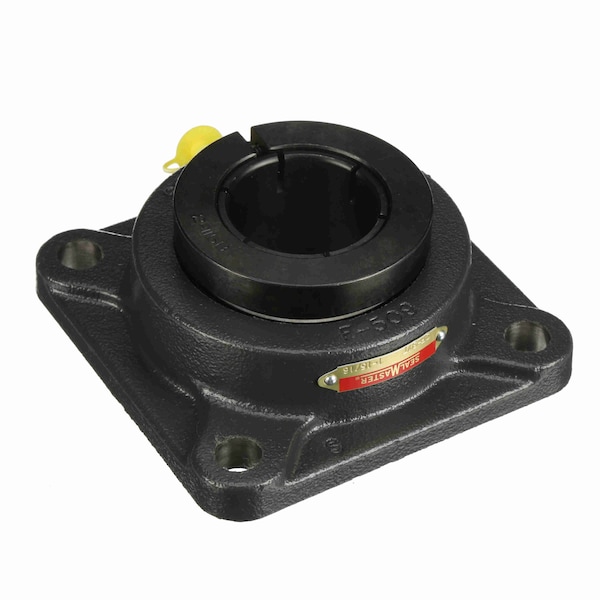

Mounted Cast Iron Four Bolt Flange Ball Bearing, SF-31T
Mfr # SF-31T
Zoro # G5003830
Free Shipping & Returns
$335.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Bore Dia. 1.938 in
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Bearing Steel
- Bolt Hole Center-to-Center 4-3/8 in
- Bolt Size 0.563 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Sealmaster
- MFR # SF-31T
- Zoro # G5003830
- UPC # 662461030080
- Country of Origin Mexico
- Category Flange Bearings
Dimensions
Bore Dia. | 1.938 in |
Bolt Size | 0.563 in |
Overall Height | 2.219 in |
Overall Length | 5-5/8 in |
Overall Width | 5-5/8 in |
Details
Bearing Housing Material Type | Cast Iron |
Bearing Insert Material | 52100 Bearing Steel |
Bolt Hole Center-to-Center | 4-3/8 in |
Lubrication | Lithium Complex NLGI 2 Grease |
Locking Type | Concentric |
Temp. Range | Up to 220°F |
Finish | Powder Coated |
Dynamic Load Capacity | 7889 lb |
Max. RPM | 5000 RPM |
