Shop All Flange Bearings
Sealmaster

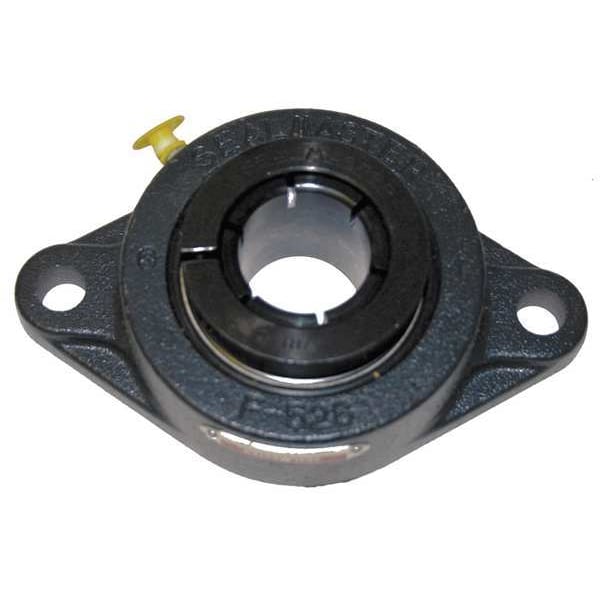

Flange Bearing, 2-Bolt, Ball, 1-7/16" Bore

product price: $225.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 1 7/16 in
  • Shaft Locking Type Concentric Collar
  • Bearing Housing Material Type Cast Iron
  • Bearing Insert Material Alloy Steel
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Bore Dia. 1 7/16 in
Bolt Size 1/2 in
Overall Height 3 15/16 in
Dimension N 3/4 in
Overall Length 6.875 in
Dimension C 9/16 in
Dimension J 4 1/8 in
Dimension A 6 3/4 in
Dimension B 5 21/32 in
Dimension F 17/32 in
Overall Width 2 in
Dimension M 1 3/16 in
Dimension L 2 1/16 in
Dimension H 3 1/2 in
Dimension E 2 1/64 in
Dimension G 9/16 in
Dimension D 1 1/2 in
Mount Hole Center-to-Center Height 5 21/32 in
Back Side to Center Width 0.828 in
Mount Hole Size 33/64 in
Bore Diameter 1 7/16 in
Mounting Bolt Size 7/16 in
Mount Hole Center-to-Center Length 5 21/32 in

Description

2 Bolt Flange Bearing, Back Side to Center Width 0.828 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UCX07-23, Lubricant Material NLGI #2 Equivalent, Maximum Speed 4,150 RPM, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Height 5 21/32 in, Number of Mount Holes 2
