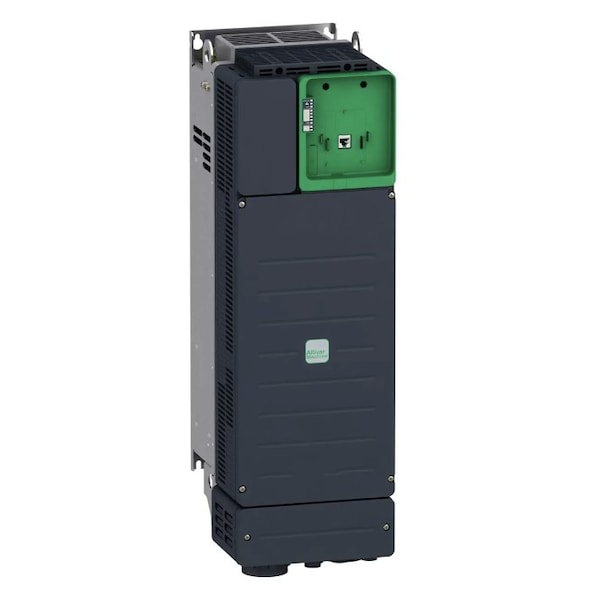

Variable Frequency Drive, 60 hp, 480V AC

Mfr # ATV340D37N4E
Zoro # G0197218

$9,509.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

For Use With Three-phase supply voltage: 380...480 V 50/60 Hz
Input Frequency 50/60 Hz
Standards EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Max. Output Amps 105.6 A, 111.8 A
With Line Contactor / No Line Contactor With Line Contactor

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ATV340D37N4E
Zoro # G0197218
UPC #
785901752493
Country of Origin China
Category AC Speed Controls

Dimensions

Width	8.39 in
Height	25.98 in
Depth	10.31 in
Overall Width	8 3/8 in
Overall Depth	10 3/8 in
Overall Height	26 in

Details

For Use With	Three-phase supply voltage: 380...480 V 50/60 Hz
Input Frequency	50/60 Hz
Standards	EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1
Max. Output Amps	105.6 A, 111.8 A
With Line Contactor / No Line Contactor	With Line Contactor
Display Type	None
Protection	Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection
Control Method	Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard
Input Voltage	480V AC
Item	Variable Speed Drive
Max. HP	50 hp, 60 hp
Output Voltage	480V AC
Digital Readout	No
Dynamic Braking	No
Input Phase AC	Three
Input Type	Analog, Discrete
Output Frequency Range	0.1 to 599 Hz
Color	Black/Blue/Gray
Start/Stop Control	Programmable
Output Phase AC	Three
Output Type	Analog, Discrete
Series	Altivar Machine ATV340
Adjustable Acceleration Time	0.01 to 9,999 sec
Enclosure Rating	NEMA 1
Maximum Output Current	88 A
Enclosure	Open
Adjustable Deceleration Time	0.01 to 9,999 sec
Number of Outputs	(3) Analog; (8) Discrete
Number of Inputs	(2) Analog; (1) Discrete; (3) Relay
Style	Ethernet
With Bypass / No Bypass	No Bypass
Ethernet Port Included	Yes
Displays	None
Torque Application	Constant Torque, Variable Torque
Maximum Output Power	60 hp
Application	Industrial Process and Utilities
Brake Chopper Included	Yes
Output Voltage Range	323V AC to 528V AC
Input Voltage Range	380 to 480V AC
Key Pad Lockout	None

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 60 hp, Maximum Output Current 88 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
