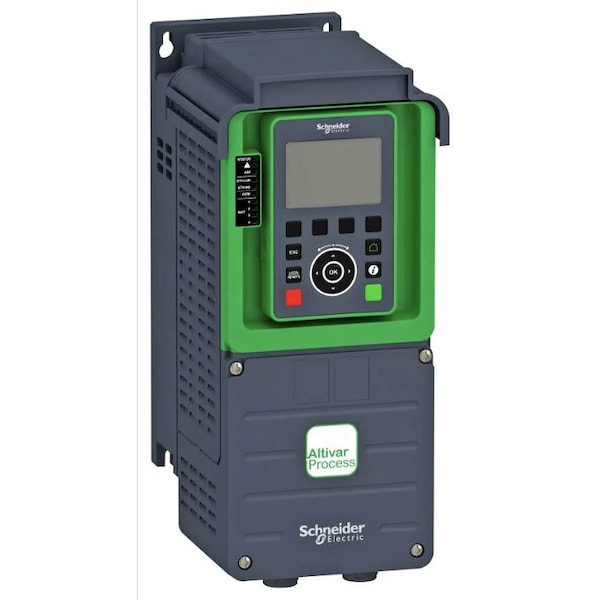

Variable Frequency Drive, 2 HP, 4.4A

Mfr # ATV630U15N4
Zoro # G0211683

$2,129.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Width 5.67 in
Enclosure Totally Enclosed
Input Voltage 480V AC
Protection Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Digital Readout Yes

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ATV630U15N4
Zoro # G0211683
UPC #
785901966876
Country of Origin Indonesia
Category NEMA-Rated Enclosure Drives

Dimensions

Width	5.67 in
Height	13.78 in
Depth	7.99 in
Overall Depth	8 in
Overall Height	13 3/4 in
Overall Width	5 3/4 in

Details

Item	Variable Speed Drive
Enclosure	Totally Enclosed
Input Voltage	480V AC
Protection	Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage
Digital Readout	Yes
Adjustable Acceleration Time	0.01 to 9,999 sec
Max. Output Amps	4.4 A
Accepts Input Control Signal	Yes
Standards	UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1
Input Frequency	50/60 Hz
Output Frequency Range	0.1 to 500 Hz
Start/Stop Control	Programmable
Dynamic Braking	No
Key Pad Lockout	None
Output Phase AC	Three
Input Phase AC	Three
Max. HP	2 hp
Adjustable Deceleration Time	0.01 to 9,999 sec
With Bypass / No Bypass	No Bypass
Control Method	Keypad, Remote Keypad, Terminal, Digital Communication Network
For Use With	Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW
Display Type	LCD
Displays	LCD Keypad
Output Voltage	480V AC
Control Type	Keypad, Remote Keypad, Terminal, Digital Communication Network
With Line Contactor / No Line Contactor	With Line Contactor
Style	Compact
Output Type	Analog, Discrete
Series	Altivar Process ATV600 Variable Speed Drives
Input Type	Analog, Discrete
Number of Inputs	(3) Analog; (8) Discrete
Application	Industrial Process and Utilities
Number of Outputs	(2) Analog; (3) Relay
Torque Application	Constant Torque, Variable Torque
Output Voltage Range	380V AC to 480V AC
Enclosure Rating	NEMA 1
Color	Black/Blue/Gray
Ethernet Port Included	Yes
Input Voltage Range	380 to 480V AC
Maximum Output Power	2 hp
Brake Chopper Included	No
Maximum Output Current	4 A

Description

Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 2 hp, Maximum Output Current 4 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
