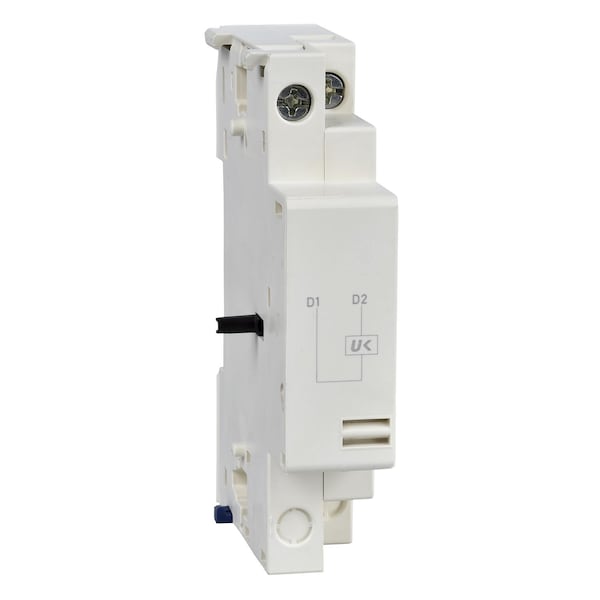

Undervoltage release (MN), TeSys Deca, 500V AC 50Hz / 600V AC 60Hz

Mfr # GVAU505
Zoro # G0852601

$120.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Coil Volts 500/600V AC
Features Mercury Free
Depth 66 mm
Hz 50/60 Hz
Height 89 mm

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # GVAU505
Zoro # G0852601
UPC #
785901596981
Country of Origin Czechia
Category Magnetic Motor Starters

Dimensions

Depth	66 mm
Height	89 mm
Width	18 mm

Details

Item	Manstarter Undervoltage Trip 575Vac Iec
Coil Volts	500/600V AC
Features	Mercury Free
Hz	50/60 Hz
Weight	0.105 kg
Color	dark grey
Operating Time	10...15 ms IEC 60947-1
Mechanical Durability	10000 cycles with GV3P and GV3L, 30000 cycles with GV2ME and GV2P
Threshold Tripping Voltage	0.7...0.35 Un
Device Short Name	GVAU
Tightening Torque	< 1.4 N.m screw clamp terminals
Control Circuit Voltage Limits	0.85...1.1 Un
Hold-In Power Consumption In Va	3.5-3.5 VA AC
[Ui] Rated Insulation Voltage	690 V AC IEC 60947-1, 600 V AC UL 60947-4-1, 600 V AC CSA C22.2 No 60947-4-1
Range Compatibility	TeSys GV2ME, TeSys GV2LE, TeSys GV2L, TeSys GV2P, TeSys GV3L, TeSys GV3P, TeSys Deca
Range	TeSys, TeSys Deca
Inrush Power In Va	12-12 VA AC
Connections - Terminals	screw clamp terminals 1 1-2.5 mm²solid, screw clamp terminals 2 1-2.5 mm²solid, screw clamp terminals 1 0.75-2.5 mm²flexible without cable end, screw clamp terminals 2 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 0.75-1.5 mm²flexible with cable end, screw clamp terminals 2 0.75-1.5 mm²flexible with cable end
[Uc] Control Circuit Voltage	500 V AC 50 Hz, 600 V AC 60 Hz
Hold-In Power Consumption In W	1.1-1.1 W
On-Load Factor	1
Product or Component Type	undervoltage release
Inrush Power In W	8 W

Description

TeSys GV electrical trip, MN undervoltage release, 500V AC 50Hz / 600V AC 60Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
