Touch panel screen, Harmony STO & STU, 4.3inch wide, RS 232 terminal block

Mfr # HMISTO705
Zoro # G7656207

$478.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Standards ANSI/ISA 12.12.01 || CSA C22.2 No 142 || EN 61000-6-2 || CSA C22.2 No 213 || UL 61010-1 || EN 61131-2 || EN 61000-6-4 || UL 61010-2-201
Power Consumption In W 7.5 W
Touch Panel analogue
Ambient Air Temperature For Operation 0-50°C
Nema Degree Of Protection NEMA 4X/13 front panel indoor use)

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # HMISTO705
Zoro # G7656207
UPC #
785901842835
Country of Origin China
Category PLC Displays & Touch Panels

Dimensions

Display Size	4.3 inch
Cut-Out Dimensions	77.5 x 112.5 mm \|\| 66 x 105 mm with mounting adaptor

Details

Item	Color Touch Panel Rs232 Term Block 4.3"
Standards	ANSI/ISA 12.12.01 \|\| CSA C22.2 No 142 \|\| EN 61000-6-2 \|\| CSA C22.2 No 213 \|\| UL 61010-1 \|\| EN 61131-2 \|\| EN 61000-6-4 \|\| UL 61010-2-201
Power Consumption In W	7.5 W
Touch Panel	analogue
Ambient Air Temperature For Operation	0-50°C
Nema Degree Of Protection	NEMA 4X/13 front panel indoor use)
Memory Description	back up of data 512 kB \|\| application memory 26 MB
Operating Altitude	6561.68 ft (2000 m)
Display Colour	65536 colours
Display type	colour TFT LCD
Software Designation	EcoStruxure Operator Terminal Expert
Number Of Pages	8999
Relative Humidity	10-90 % without condensation
Fixing Mode	by 2 installation fasteners 1.5 to 6 mm thick panel
Ambient Air Temperature For Storage	-20-60°C
Backlight Lifespan	50000 hours white
Supply	external source
Display Resolution	480 x 272 pixels
Ip Degree Of Protection	IP65f front panel) \|\| IP20 rear panel)
Front Material	plastic
Downloadable Protocols	third party protocols \|\| Modbus
Product Certifications	KCC \|\| CE \|\| UL \|\| C-tick \|\| ATEX zone 2/22 \|\| cUL \|\| UKCA
Integrated Connection Type	1 USB 2.0 type mini B \|\| 1 USB 2.0 type A \|\| 1 serial link - 9-pin terminal block - RS232C 2400...115200 bps)
Range Compatibility	MitsubishI \|\| Siemens \|\| Omron \|\| Allen-Bradley
Brightness	16 levels via touch panel
[Us] Rated Supply Voltage	12...24 V DC - 10...20 %
Vibration Resistance	1 gn 5-150 Hz) IEC 61131-2 \|\| 3.5 mm constant amplitude 5-150 Hz) IEC 61131-2
Realtime Clock	with RTC-battery set optional
Product Or Component Type	touch panel screen
Operating System	Harmony
Electromagnetic Compatibility	resistance to radiated electromagnetic fields 10 V/m 80 MHz...2.7 GHz) \|\| resistance to electrostatic discharge 8 kV air discharge)level 3 EN 61000-4-2 \|\| resistance to electrostatic discharge 6 kV direct contact)level 3 EN 61000-4-2
Enclosure Material	PPT
Character Font	ASCII (European characters) \|\| Chinese (simplified Chinese) \|\| Korean \|\| Japanese (ANK, Kanji) \|\| Cyrillic \|\| Taiwanese (traditional Chinese)
Shock Resistance	15 gn 11 msIEC 61131-2
Range of Product	Harmony STO & STU

Description

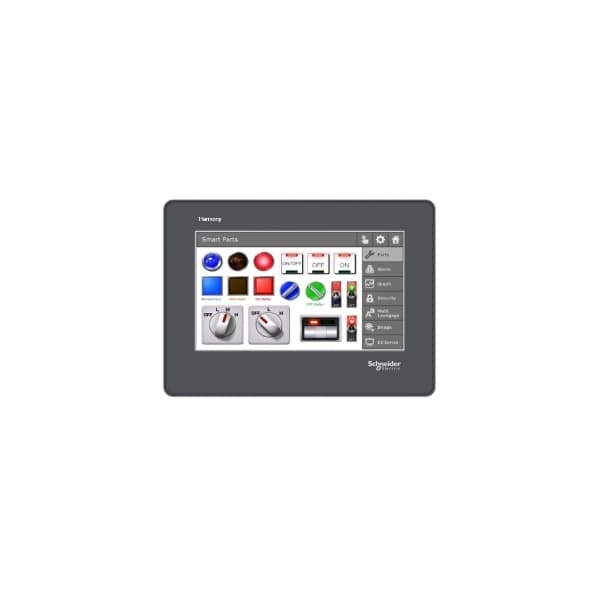

This Magelis STO small touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 4.3 color TFT LCD display with, 480 x 272 pixels and 26MB EPROM. It also has 1 host + 1 mini-B USB ports and 1 RS232C / RS485 port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays color graphic pages. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
