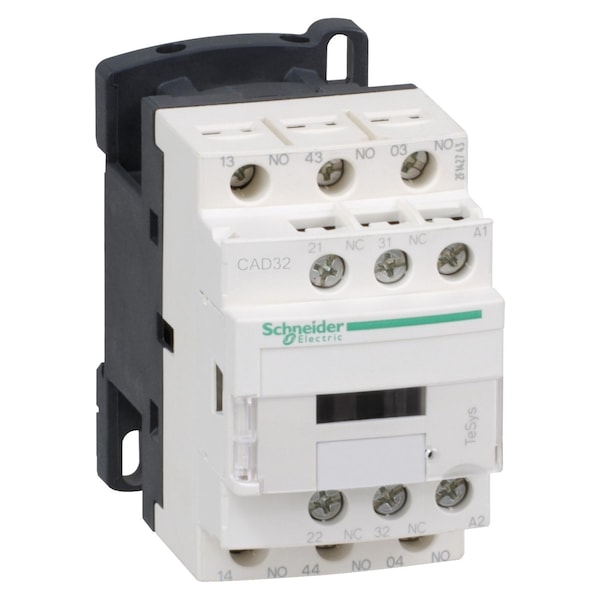

TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 600 V AC standard coil

Mfr # CAD32X7
Zoro # G0847920

$65.15

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Coil Volts 600V
Height 77 mm
Width 45 mm
Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Depth 84 mm

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # CAD32X7
Zoro # G0847920
UPC #
785901594543
Country of Origin France
Category Control Relays

Dimensions

Height	77 mm
Width	45 mm
Depth	84 mm

Details

Coil Volts	600V
Item	Relay 600V 10Amp Tesys + Options
Standards	EN/IEC 60947-5-1 \|\| GB/T 14048.5 \|\| UL 60947-5-1 \|\| CSA C22.2 No 60947-5-1 \|\| JIS C8201-5-1
Contactor Application	control circuit
[Ue] Rated Operational Voltage	<= 690 V AC 25...400 Hz
Product Certifications	CB Scheme \|\| CCC \|\| UL \|\| CSA \|\| EAC \|\| CE \|\| UKCA
[Ui] Rated Insulation Voltage	600 V UL \|\| 600 V CSA \|\| 690 V IEC 60947-5-1
Non-Overlap Time	1.5 ms on energisation between NC and NO contact \|\| 1.5 ms on de-energisation between NC and NO contact
Tightening Torque	1.2 N.m screw clamp terminals Philips No 2 \|\| 1.2 N.m screw clamp terminals flat Ø 6 mm \|\| 1.2 N.m screw clamp terminals pozidriv No 2
Irms Rated Making Capacity	140 A AC IEC 60947-5-1 \|\| 250 A DC IEC 60947-5-1
Utilisation Category	AC-14 \|\| AC-15 \|\| DC-13
[Ith] Conventional Free Air Thermal Current	10 A 60°C
Device Short Name	CAD
Mounting Support	rail \|\| plate
[Uc] Control Circuit Voltage	600 V AC 50/60 Hz
Ambient Air Temperature For Operation	-40-60°C \|\| 60-70°C with derating
Protective Treatment	TH IEC 60068
Product Or Component Type	control relay
Mechanical Durability	30 Mcycles
Ambient Air Temperature For Storage	-60-80°C
[Icw] Rated Short-Time Withstand Current	100 A - 1 s \|\| 120 A - 500 ms \|\| 140 A - 100 ms
Insulation Resistance	> 10 MOhm
Product Name	TeSys CAD
Hold-In Power Consumption In Va	8-8 VA 50 Hz 20°C)
Control Circuit Type	AC 50/60 Hz
Control Circuit Voltage Limits	0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz \|\| 0.8...1.1 Uc -40-60°C operational AC 50 Hz \|\| 0.85...1.1 Uc -40-60°C operational AC 60 Hz \|\| 1...1.1 Uc 60-70°C operational AC 50/60 Hz
Operating Time	12...22 ms coil energisation and NO closing \|\| 4...12 ms coil de-energisation and NO opening \|\| 4...19 ms coil energisation and NC opening \|\| 6...17 ms coil de-energisation and NC closing
Ip Degree Of Protection	IP2X front face VDE 0106
Range	TeSys \|\| TeSys Deca
Associated Fuse Rating	10 A gG IEC 60947-5-1
Minimum Switching Current	5 mA
Maximum Operating Rate	180 cyc/mn
Connections - Terminals	screw clamp terminals 1 1-4 mm²flexible without cable end \|\| screw clamp terminals 2 1-4 mm²flexible without cable end \|\| screw clamp terminals 1 1-4 mm²flexible with cable end \|\| screw clamp terminals 2 1-2.5 mm²flexible with cable end \|\| screw clamp terminals 1 1-4 mm²solid without cable end \|\| screw clamp terminals 2 1-4 mm²solid without cable end
Minimum Switching Voltage	17 V
Pole Contact Composition	3 NO + 2 NC
Inrush Power In Va	70-70 VA 50 Hz 20°C)
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Operating Altitude	0...9842.52 ft (0...3000 m)
Mechanical Robustness	shocks control relay open10 Gn for 11 ms IEC 60068-2-27 \|\| shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 \|\| vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 \|\| vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

Description

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 600V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
