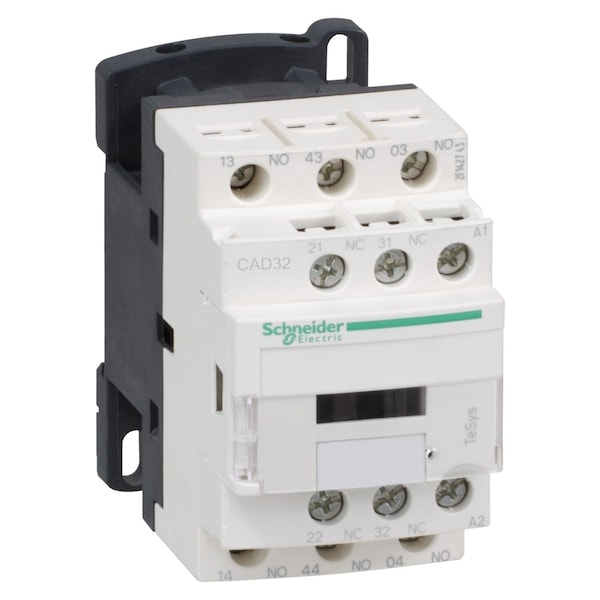

TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 240 V AC standard coil

Mfr # CAD326U7
Zoro # G0847981

$98.95

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Coil Volts 600V
Width 45 mm
Standards EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1
Depth 84 mm
Height 77 mm

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # CAD326U7
Zoro # G0847981
UPC #
785901448631
Country of Origin France
Category Control Relays

Dimensions

Width	45 mm
Depth	84 mm
Height	77 mm

Details

Coil Volts	600V
Item	Relay 600V 10Amp Tesys+ Options
Standards	EN/IEC 60947-5-1 \|\| GB/T 14048.5 \|\| UL 60947-5-1 \|\| CSA C22.2 No 60947-5-1 \|\| JIS C8201-5-1
Product Or Component Type	control relay
Device Short Name	CAD
Mechanical Robustness	shocks control relay open10 Gn for 11 ms IEC 60068-2-27 \|\| shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 \|\| vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 \|\| vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
[Icw] Rated Short-Time Withstand Current	100 A - 1 s \|\| 120 A - 500 ms \|\| 140 A - 100 ms
Protective Treatment	TH IEC 60068
Hold-In Power Consumption In Va	8-8 VA 50 Hz 20°C)
Mechanical Durability	30 Mcycles
[Ue] Rated Operational Voltage	<= 690 V AC 25...400 Hz
Ambient Air Temperature For Operation	-40-60°C \|\| 60-70°C with derating
Mounting Support	plate \|\| rail
Control Circuit Type	AC 50/60 Hz
[Ith] Conventional Free Air Thermal Current	10 A 60°C
Utilisation Category	AC-14 \|\| AC-15 \|\| DC-13
Ambient Air Temperature For Storage	-60-80°C
Non-Overlap Time	1.5 ms on energisation between NC and NO contact \|\| 1.5 ms on de-energisation between NC and NO contact
Associated Fuse Rating	10 A gG IEC 60947-5-1
Operating Time	12...22 ms coil energisation and NO closing \|\| 4...12 ms coil de-energisation and NO opening \|\| 4...19 ms coil energisation and NC opening \|\| 6...17 ms coil de-energisation and NC closing
Control Circuit Voltage Limits	0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz \|\| 0.8...1.1 Uc -40-60°C operational AC 50 Hz \|\| 0.85...1.1 Uc -40-60°C operational AC 60 Hz \|\| 1...1.1 Uc 60-70°C operational AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947
Contactor Application	control circuit
[Ui] Rated Insulation Voltage	600 V UL \|\| 600 V CSA \|\| 690 V IEC 60947-5-1
Minimum Switching Voltage	17 V
Ip Degree Of Protection	IP2X front face VDE 0106
Insulation Resistance	> 10 MOhm
Product Name	TeSys CAD
Operating Altitude	0...9842.52 ft (0...3000 m)
Minimum Switching Current	5 mA
Pole Contact Composition	3 NO + 2 NC
Connections - Terminals	lugs-ring terminals 8 mm)
Range	TeSys \|\| TeSys Deca
Product Certifications	CB Scheme \|\| CCC \|\| UL \|\| CSA \|\| EAC \|\| CE \|\| UKCA
Inrush Power In Va	70-70 VA 50 Hz 20°C)
Irms Rated Making Capacity	140 A AC IEC 60947-5-1 \|\| 250 A DC IEC 60947-5-1
[Uc] Control Circuit Voltage	240 V AC 50/60 Hz
Maximum Operating Rate	180 cyc/mn

Description

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by lugs. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
