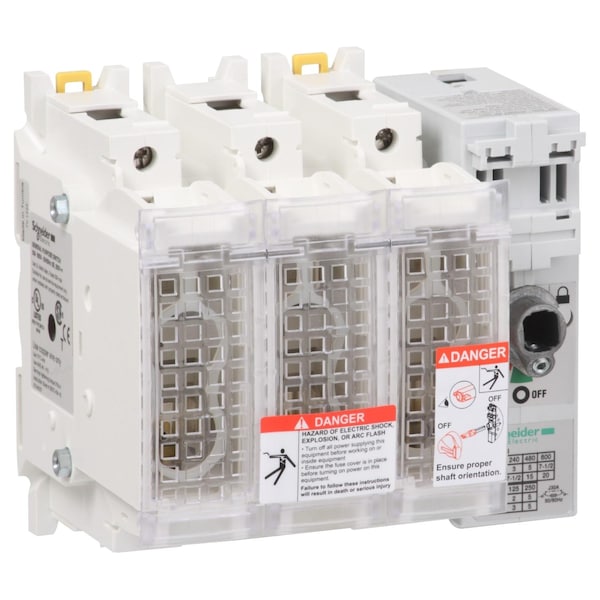

Switch disconnector fuse, TeSys GS, 3P, 30A, fuse type UL, size J

Mfr # GS2EU3N
Zoro # G3996620

$301.99

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Mounting Rail, Plate
Ambient Temp. Limits Operation: -20 to 70°C; Storage: -40 to 80°C
Green Environmental Attribute Mercury Free, Toxic Heavy Metal Free
Standards UL98; CSA C22.2 No 4
Max. Amps 30 A

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # GS2EU3N
Zoro # G3996620
Country of Origin Tunisia
Category Electrical Wire & Cable

Dimensions

Width	149.3 mm
Height	136 mm
Depth	123 mm
Fuse Size	J

Details

Item	TeSys GS - switch-disconnector-fuse - 3
Mounting	Rail, Plate
Ambient Temp. Limits	Operation: -20 to 70°C; Storage: -40 to 80°C
Green Environmental Attribute	Mercury Free, Toxic Heavy Metal Free
Standards	UL98; CSA C22.2 No 4
Max. Amps	30 A
Termination Type	Lugs-Ring Terminals
Product or Component Type	switch-disconnector-fuse
Fuse Type	UL
Mechanical Durability	10000 cycles
Connections - Terminals	power circuit lugs-ring terminals 2-13 mm²
[Ith] Conventional Free Air Thermal Current	30 A (at 40°C)
Network Type	DC, AC
Product Name	TeSys GS
Fire Resistance	960°C body
Poles Description	3P
Rated Operational Power In W	15 kW 400 V, 18.5 kW 500 V, 25 kW 690 V
Range	TeSys
Type of Operating Handle	external frontal
Ip Degree of Protection	IP20 IEC 60529 with terminal cover)
Contacts Type And Composition	3 NO
Device Short Name	GS2EU
[Uimp] Rated Impulse Withstand Voltage	8 kV
[Ui] Rated Insulation Voltage	750 V
Short-Circuit Withstand	17.6 kA
Protected Poles Description	3t
Ambient Air Temperature For Operation	-20-70°C
Electrical Durability	6000 cycles
Network Frequency	50/60 Hz
Mounting Support	rail, plate
Tightening Torque	power circuit 6.6-6.6 N.m
Ambient Air Temperature For Storage	-40-80°C

Description

TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/750V, to be used with class J fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with an external front side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 200kA@600V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).
