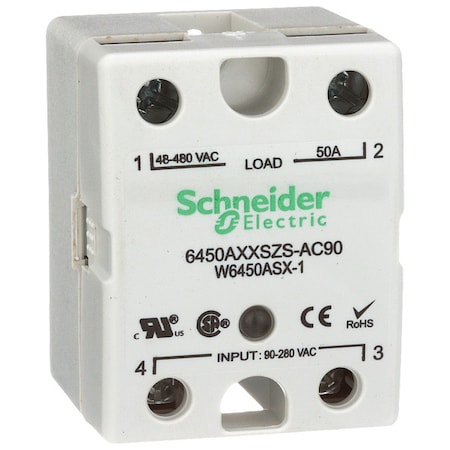

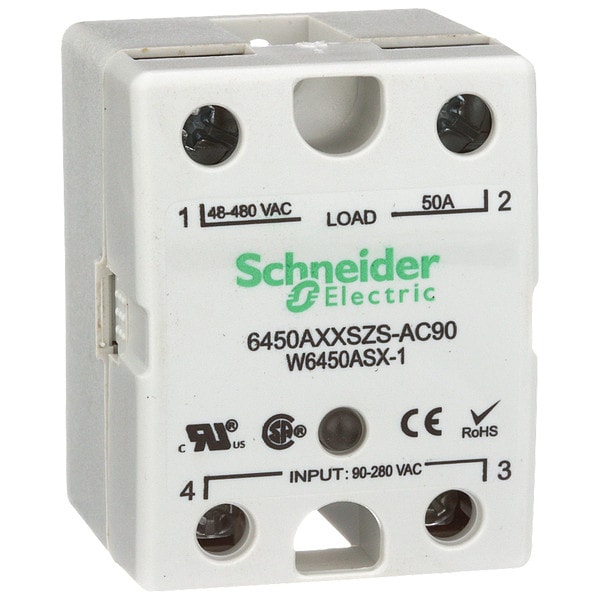

Solid State Relay, 90 to 280VAC, 50A

Mfr # 6450AXXSZS-AC90
Zoro # G2821831

$71.69

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Promotion Restriction Not eligible for promotion
Input or Control Voltage 90 to 280V AC
Output or Controlled Voltage Range 48 to 480V AC
Max. Output Amps w/Heat Sink 50 A
Case Color Gray

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # 6450AXXSZS-AC90
Zoro # G2821831
Country of Origin Mexico
Category Relay Accessories

Dimensions

Overall Height - Relay	1.4 in
Body Width - Relay	1.74 in
Body Depth - Relay	2.3 in
Body Height - Relay	1.4 in
Depth	2.30 in (58.4 mm)
Height	1.39 in (35.3 mm)
Width	1.85 in (47.1 mm)
Body Depth	2.29 in
Overall Depth	2.29 in
Body Height	1.38 in
Body Width	1.85 in

Details

Promotion Restriction	Not eligible for promotion
Item - Relay	Solid State Relay
Input or Control Voltage	90 to 280V AC
Output or Controlled Voltage Range	48 to 480V AC
Max. Output Amps w/Heat Sink	50 A
Case Color	Gray
Mounting - Relay	Surface
Contact Form - Relay	SPST-NO
Item	Solid State Relay
Finger Safe	Yes
Input Power Consumption (Burden)	0.2 to 1.0VA
Heat Sink	Not Included
Mounting	Surface
Input Voltage	90 to 280V AC
Max. Output w/Heat Sink	50A
Input or Control Voltage Range	90 to 280VAC
Turns On At	Zero Cross
Switch Type	SCR
Phase	1
Standards	CE Certified, CSA Certified, UL Listed
Voltage Output	48 to 480VAC
Max. Output Amps Without Heat Sink	12.0 A
Relay Turns On At	Zero Crossing
Mounting Style	Panel
Electrical Connection	Screw Clamp
Series	6000 Series
Status Indicator	Green LED Indicator
Dielectric Strength	4,000V
Maximum Output Current without Heat Sink	12 A
Electrical Phase	Single
IP Rating	IP20
Maximum Operating Temperature	176 Degrees F
Output Switching Mode	Zero Crossing
Insulation Resistance	1,000 megaohm
Maximum Output Current with Heat Sink	50 A
Voltage Type	AC Output
Current Type	AC
Minimum Operating Temperature	-40 Degrees F
Response Time	10 msec
Power Factor	1
Switch Configuration	Form A
Weight	3.7 oz
Output Voltage Range	48 to 530V AC
Drop Out Voltage	1.7V DC
Switch Component Type	SCR
Input Current	2 mA; 4 mA
Voltage Drop	<1.7 V on-state AC
maximum output current	50 A AC
Holding Current	250 mA
Maximum Peak Voltage	800 V
Switch Function	SPST
Contacts Type and Composition	NO
Ambient Air Temperature for Storage	-40 to 257Â°F (-40 to 125Â°C)
Screw Type	M3.5; M6
Insulating Resistance	1 Gâ„¦
Switching Device	SCR output; Zero voltage switching
Leakage Current	10 mA at off-state
Control Circuit Voltage	90...280 V AC
Input Impedance	13000 Ohm
Thermal Resistance	0.63Â°C/W
Output Voltage	48...530 V AC
Maximum I²t for fusing	1035 A².s 8.3 ms
Protection Type	Reverse polarity protection
Input Current Limits	2 mA at 120 V AC typical; 4 mA at 240 V AC typical
Local Signalling	for input status 1 LED (green)
Must Release Voltage	10 V
Tightening Torque	10 lb.in for input; 20 lb.in for output
Ambient Air Temperature for Operation	-40 to 176Â°F (-40 to 80Â°C)
DV/dt	500 V/Âµs off-state at maximum rated voltage
Surge Current	625 A 16.6 ms
Range	Legacy
Product Certifications	UL; CSA; CE
Connections Terminals	Input screw clamp terminal, 1; Output screw clamp terminals, 1
Network Number of Phases	1 phase
Maximum IÂ²t for fusing	1035 AÂ².s 8.3 ms

Description

Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Not Included, Input Current 2 mA; 4 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 50 A, Maximum Output Current without Heat Sink 12 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 530V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style Panel, Switch Configuration Form A
