Schneider Electric

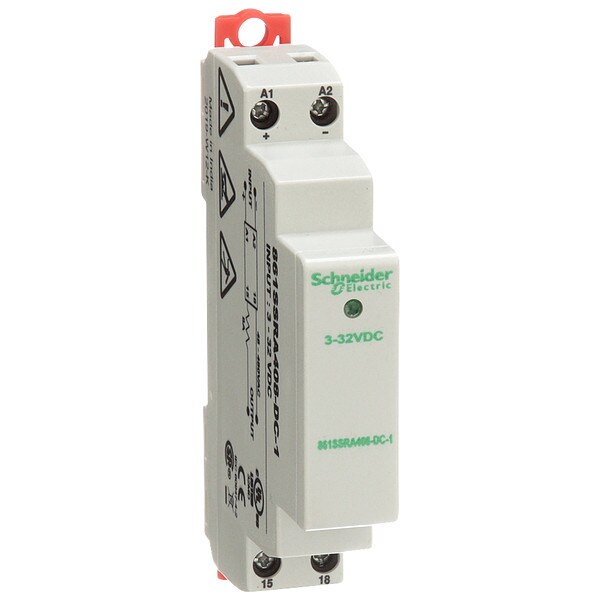

Solid State Relay, 3 to 32VDC, Triac, 8A
Mfr # 861SSRA408-DC-1
Zoro # G3205587
Not eligible for select promotions
$24.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Input or Control Voltage 3 to 32V DC
- Output or Controlled Voltage Range 48 to 480V AC
- Max. Output Amps w/Heat Sink 8 A
- Case Color Gray
- Mounting - Relay DIN Rail
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schneider Electric
- MFR # 861SSRA408-DC-1
- Zoro # G3205587
- Country of Origin India
- Category Relay Accessories
Dimensions
Body Depth - Relay | 0.7 in |
Body Height - Relay | 2.6 in |
Body Width - Relay | 3.5 in |
Overall Height - Relay | 2.6 in |
Depth | 3.54 in (89.83 mm) |
Height | 2.56 in (65 mm) |
Width | 0.62 in (15.75 mm) |
Body Depth | 2.6 in |
Overall Depth | 2.6 in |
Body Width | 0.62 in |
Body Height | 3.5 in |
Description
Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 30 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 8 A, Maximum Output Current without Heat Sink 8 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 480V AC, Standards CE Certified, CSA Certified, UL Listed, Switch Component Type Triac, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel, Switch Configuration Form A
