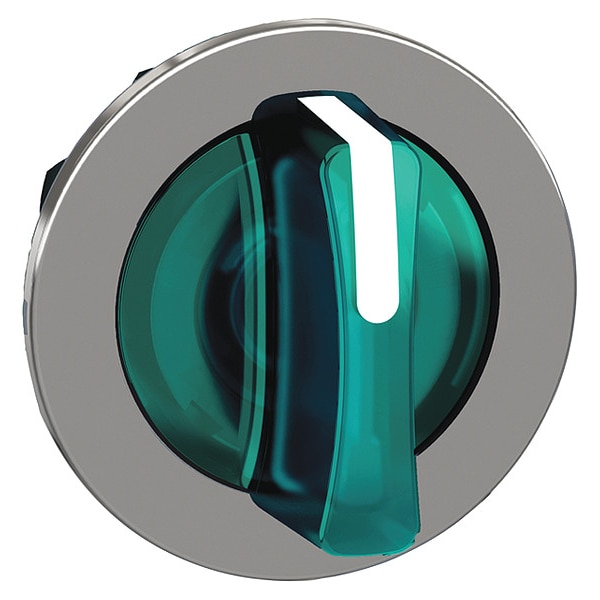

ShortHandSelectSwtch, Illum, Grn, 3Pos, 30mm

Mfr # ZB4FK1533
Zoro # G0193894

$32.00

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Size 30 mm
Basic Material Metal
Action Momentary/Maintained/Momentary
Cam No Cam Included
Operator Head Material Plastic

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ZB4FK1533
Zoro # G0193894
Country of Origin France
Category Selector Switches

Dimensions

Size	30 mm
Panel Cutout Diameter	30 mm
Manufacturer Warranty Length	18 mo
Cad Overall Height	36.6 mm
Cad Overall Depth	47 mm
Mounting Diameter	30.5 mm
Cad Overall Width	36.6 mm

Details

Item	Short-Handled Selector Switch
Basic Material	Metal
Action	Momentary/Maintained/Momentary
Cam	No Cam Included
Operator Head Material	Plastic
Operator Color	Green
Position	3
Bezel Material	Chrome Plated Metal
Bezel Color	Chrome
Standards	CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
Lamp Type	LED
Series	XB4
Lamp Module Type	Module Not Included
Lamp Module Voltage	Module Not Included
Lamp Voltage	Dependant on Module Used
IP Rating	IP66, IP67, IP69, IP69K
Switch Function @ 4th Position	No Fourth Position
Operator Illumination	Illuminated
Operator Head Type	Short-Handled Knob
NEMA Enclosure Rating	1, 12, 13, 2, 3, 4, 4X
Hazardous Location Specification	Not Rated
Number of Positions	3
Operator Head Color	Green
Type Of Operator	to centre spring return
Ik Degree Of Protection	IK06 IEC 50102
Product Or Component Type	head for illuminated selector switch
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6 \|\| 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Overvoltage Category	class I IEC 60536
Device Presentation	basic element
Mechanical Durability	500000 cycles
Head Type	built-in-flush
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529 \|\| IP69 IEC 60529 \|\| IP69K ISO 20653 \|\| Type 13 UL 50 E \|\| Type 12 UL 50 E \|\| Type 4 UL 50 E \|\| Type 4X UL 50 E
Ambient Air Temperature For Operation	-40-70Â°C
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 \|\| 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Shape Of Signaling Unit Head	round
Protective Treatment	TH
Product Certifications	UL Listed \|\| CSA \|\| CCC \|\| EAC
Operator Profile	green standard handle
Device Short Name	ZB4F
Ambient Air Temperature For Storage	-40-70Â°C
Electrical Composition Code	M3 4 single front mounting integral LED \|\| M6 2 single front mounting integral LED and transformer \|\| M10 2 single front mounting integral LED \|\| M4 4 single and double front mounting integral LED
Product Compatibility	universal LED
Operator Position Information	3 positions +/- 45Â°
Resistance To High Pressure Washer	7000000 Pa 55Â°C 0.1 m

Description

Short-Handled Selector Switch, 30 mm, 3 Position, Momentary/Maintained/Momentary Action, Operator Color Green, Operator Head Material Plastic, Bezel Material Chrome Plated Metal, Bezel Color Chrome, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CE, CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
