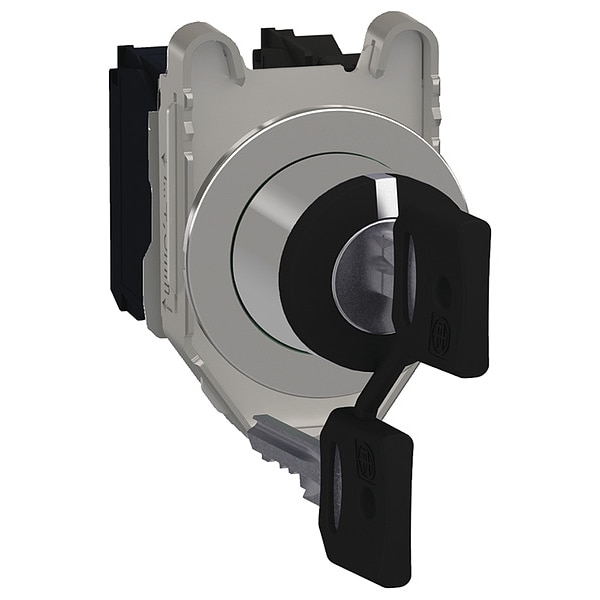

SelectorSwitch, Keyed, 3Pos, 30mm, Black

Mfr # XB4FG03
Zoro # G3546296

$89.00

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Size 30 mm
Basic Material Metal
Type of Operator Keyed
Action Maintained/Maintained/Maintained
Contact Form 2NO

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XB4FG03
Zoro # G3546296
Country of Origin France
Category Selector Switches

Dimensions

Size	30 mm
Depth	100 mm
Width	36.6 mm
Height	47 mm
Mounting Diameter	30.5 mm
Overall Depth	3.94 in
Overall Width	1.44 in
Panel Cutout Diameter	30 mm
Overall Height	1.85 in
Manufacturer Warranty Length	18 mo

Details

Item	Selector Switch
Basic Material	Metal
Type of Operator	Keyed
Action	Maintained/Maintained/Maintained
Contact Form	2NO
Operator Head Material	Metal
Cam	No Cam Included
Color	Black
Bezel Material	Chrome Plated Metal
Position	3
Bezel Color	Chrome
IP Rating	IP66, IP67, IP69, IP69K
DC Contact Rating	0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Series	XB4
Contact Rating	0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC
NEMA Contact Rating Designation	A600/Q600
Standards	CCC, CSA, EAC, UL Listed
AC Contact Rating	1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Operator Profile	black key switch
Product Or Component Type	selector switch
Product Certifications	UL Listed \|\| CSA \|\| CCC \|\| EAC
[Ui] Rated Insulation Voltage	600 V 3)EN 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Key Withdrawal Position	left and center
Head Type	built-in-flush
Tightening Torque	0.8-1.2 N.m EN 60947-1
Positive Opening	without
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN/IEC 60947-1
Device Presentation	complete product
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ã˜ 4 mm \|\| slotted flat Ã˜ 5.5 mm
Operator Position Information	3 positions +/- 45Â°
Ambient Air Temperature For Operation	-40-70Â°C
Fixing Mode	by screws
Contact Operation	slow-break
Contacts Usage	standard contacts
Mechanical Durability	1000000 cycles
Contacts Type And Composition	2 NO
Fixing Collar Material	zamak
Overvoltage Category	class I IEC 60536
Ik Degree Of Protection	IK06 conforming to IEC 50102
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6 \|\| 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Shape Of Signaling Unit Head	round
[Uimp] Rated Impulse Withstand Voltage	6 kV EN 60947-1
Torque Value	0.14 N.m NO changing electrical state
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 IEC 60529 \|\| IP69 IEC 60529 \|\| IP69K ISO 20653 \|\| Type 13 UL 50 E \|\| Type 12 UL 50 E \|\| Type 4 UL 50 E \|\| Type 4X UL 50 E
Device Short Name	XB4F
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 \|\| 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Contacts Material	silver alloy (Ag/Ni)
Device Mounting	built-in
Terminals Description Iso N°1	(23-24)NO \|\| (13-14)NO
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Ambient Air Temperature For Storage	-40-70Â°C
Type Of Keylock	key 455
Fixing Center	40 x 50 mm 1 to 6 mm thick panel)
Electrical Reliability	Î» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 \|\| Î» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Resistance To High Pressure Washer	7000000 Pa 55Â°C 0.1 m
Protective Treatment	TH
Terminals Description Iso NÂ°1	(23-24)NO \|\| (13-14)NO
Operator Head Type	Keyed
Contact Block Material	Metal
Switch Function @ 1st Position	On
Operator Head Color	Black
Operator Illumination	Non-Illuminated
Includes Operator Key	Key Included
Switch Function @ 3rd Position	On
Switch Function @ 2nd Position	Off
Number of Positions	3
Key Removal Position	Center, Left
NEMA Enclosure Rating	1, 12, 13, 2, 3, 4, 4X
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated

Description

Selector Switch, 30 mm, 3 Position, Maintained/Maintained/Maintained Action, 2NO Contact Form, Type of Operator Keyed, Color Black, Operator Head Material Metal, Basic Material Metal, Bezel Material Chrome Plated Metal, Bezel Color Chrome, Contact Rating 0.1A @ 600V DC, 0.27A @ 250 V DC, 0.55A @ 125V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Standards CCC, CSA, EAC, UL Listed
