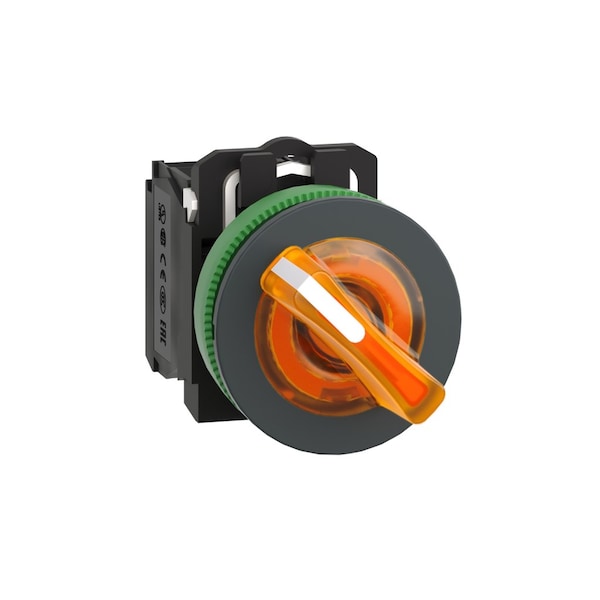

SelectorSwitch, Illum, 2Pos, 30mm, Orange

Mfr # XB5FK125B5
Zoro # G3548414

$75.00

Free Shipping & Returns

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Size 30 mm
Basic Material Plastic
Type of Operator Lever
Action Maintained/Maintained
Contact Form 1NO/1NC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # XB5FK125B5
Zoro # G3548414
Country of Origin France
Category Selector Switches

Dimensions

Size	30 mm
Depth	71 mm
Height	42 mm
Width	36.6 mm
Mounting Diameter	30.5 mm
Overall Width	1.44 in
Manufacturer Warranty Length	18 mo
Overall Height	1.65 in
Panel Cutout Diameter	30 mm
Overall Depth	2.8 in

Details

Item	Selector Switch
Basic Material	Plastic
Type of Operator	Lever
Action	Maintained/Maintained
Contact Form	1NO/1NC
Cam	No Cam Included
Operator Head Material	Plastic
Color	Orange
NEMA Rating	13, 4X
Position	2
Bezel Material	Plastic
Standards	CSA, UL Listed
Lamp Voltage	24V DC
Contact Rating	0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC
Switch Operation @ Position C	No Third Position
NEMA Contact Rating Designation	A600/Q600
DC Contact Rating	0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Lamp Type	LED
IP Rating	IP66, IP67, IP69, IP69K
AC Contact Rating	1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Series	XB5
Lamp Module Voltage	24V AC/DC
Lamp Module Type	Full Voltage
Switch Operation @ Position D	No Fourth Position
[Us] Rated Supply Voltage	24 V AC/DC 50/60 Hz
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C \|\| 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Bulb Base	integral LED
[Ui] Rated Insulation Voltage	600 V 3)EN 60947-1
Ambient Air Temperature For Operation	-40-70Â°C
Ambient Air Temperature For Storage	-40-70Â°C
Protective Treatment	TH
Shape Of Screw Head	cross Philips no 1 \|\| cross pozidriv No 1 \|\| slotted flat Ã˜ 4 mm \|\| slotted flat Ã˜ 5.5 mm
[Uimp] Rated Impulse Withstand Voltage	6 kV EN 60947-1
Head Type	built-in-flush
Contact Operation	slow-break
Device Presentation	complete product
Contacts Usage	standard contacts
Product Certifications	UL Listed \|\| CSA
Ik Degree Of Protection	IK03 IEC 50102
Terminals Description Iso N°1	(21-22)NC \|\| (13-14)NO
Electrical Reliability	Î» < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 \|\| Î» < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Contacts Material	silver alloy (Ag/Ni)
Operator Profile	orange standard handle, unmarked
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN/IEC 60947-1 \|\| screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN/IEC 60947-1
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X
Mechanical Durability	1000000 cycles
Product Or Component Type	illuminated selector switch
Operator Position Information	2 positions 90Â°
Contacts Type And Composition	1 NO + 1 NC
Positive Opening	with NC contact EN/IEC 60947-5-1 appendix K
Shape Of Signaling Unit Head	round
Device Short Name	XB5F
Electrical Shock Protection Class	class II IEC 60536
Tightening Torque	0.8-1.2 N.m EN 60947-1
Light Source	universal LED
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Resistance To High Pressure Washer	7000000 Pa 55Â°C 0.1 m
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 \|\| 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 \|\| 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 \|\| IP69 \|\| IP69K
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Supply Voltage Limits	19.2 - 30 V DC
Terminals Description Iso NÂ°1	(21-22)NC \|\| (13-14)NO
NEMA Enclosure Rating	1, 12, 13, 2, 3, 3R, 4, 4X
Operator Illumination	Illuminated
Lamp Voltage - Maximum	24 V AC/DC
Operator Head Color	Orange
Switch Function @ 2nd Position	On
Switch Function @ 4th Position	No Fourth Position
Number of Positions	2
Switch Function @ 1st Position	Off
Switch Function @ 3rd Position	No Third Position
Operator Head Type	Short-Handled Knob
Contact Block Material	Plastic
Hazardous Location Specification	Not Rated

Description

Selector Switch, 30 mm, 2 Position, Maintained/Maintained Action, 1NO/1NC Contact Form, Type of Operator Lever, Color Orange, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Contact Rating 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC, 3A @ 240V AC, 6A @ 120V AC, NEMA Contact Rating Designation A600/Q600, NEMA Rating 13, 4X, IP Rating IP66, IP67, IP69, IP69K, Cam No Cam Included, Switch Operation @ Position C No Third Position
