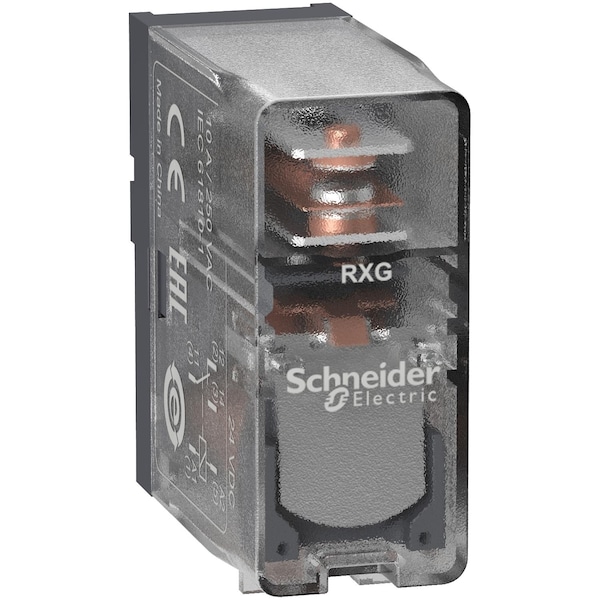

Relay 1Co 10A, 250VAC, 24VDC, Coil Clear, 24V DC Coil Volts, 1 C/O

Mfr # RXG15BD
Zoro # G1012530

$4.49

/pk 10, $0.45/ea

Sold in multiples of 10 for $44.90

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Coil Volts 24V DC
AC Contact Rating - Relay 10A @ 250V AC
Contact Form - Relay 1 C/O
Mounting - Relay Any Position
Contact Material Silver Alloy (AgSnO2In2O3)

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # RXG15BD
Zoro # G1012530
Country of Origin China
Category Plug-In Relays

Details

Item	Relay 1Co 10A,250VAC,24VDC,Coil Clear
Coil Volts	24V DC
AC Contact Rating - Relay	10A @ 250V AC
Contact Form - Relay	1 C/O
Mounting - Relay	Any Position
Contact Material	Silver Alloy (AgSnO2In2O3)
Standards	IEC 61810-1; CSA C22.2 No 14; UL 508; CE; EAC; DNV-GL
Protection Category	RT I
Coil Resistance	1100 Ohm
Series	RXG; interface relay
Switching Power	Max 2500 VA; Min 500 mW at 100 mA, 5 V DC
Operating Temp. Range	-40-70°C
Operating Time	20 ms
Current Rating	10 A 30 V DC) UL; 10 A 30 V DC) IEC; 10 A 250 V AC) IEC; 10 A 250 V AC) UL
Dielectric Strength	1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation
Switching Voltage	250 V AC/30 V DC
Shock Resistance	20 gn in operation, 100 gn not in operation
Ip Degree of Protection	IP40
Vibration Resistance	3 gn +/- 0.75 mm 10-150 Hz)in operation, 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Torque Value	0.8 N.m
Electrical Durability	100000 cycles NO resistive at 55°C, 100000 cycles NC resistive at 55°C
Device Presentation	complete product
Device Short Name	RXG
Maximum Switching Capacity	2500 VA
Product or Component Type	plug-in relay
Load Current	10 A 250 V AC
Utilisation Coefficient	0.2
Resistance	1100 Ohm +/- 10 %
[Ui] Rated Insulation Voltage	250 V IEC, 300 V CSA, 300 V UL
[Ie] Rated Operational Current	10 A 30 V DC) UL, 10 A 30 V DC) IEC, 10 A 250 V AC) IEC, 10 A 250 V AC) UL
Mechanical Durability	10000000 cycles
Maximum Switching Voltage	250 V AC, 30 V DC
Overvoltage Category	III
Operating Rate	<= 1800 cycles/hour under load, <= 18000 cycles/hour no-load
[Uc] Control Circuit Voltage	24 V DC
Ambient Air Temperature For Storage	-40-85°C
Colour of Cover	transparent
Minimum Switching Capacity	500 mW at 100 mA, 5 V DC
Drop-Out Voltage Threshold	>= 0.1 Uc DC
Series Name	interface relay
Pollution Degree	2
Insulation Resistance	1000 MOhm at 500 V DC
Relative Humidity	10-85 %
Range of Product	Harmony Electromechanical Relays
Test Levels	level A group mounting
Ambient Air Temperature For Operation	-40-70°C
[Ithe] Conventional Enclosed Thermal Current	10 A -40-55°C

Description

This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. It has large choice of number of contacts for high rated current use with space-saving design. The faston pin terminal mounts quickly and securely. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0
