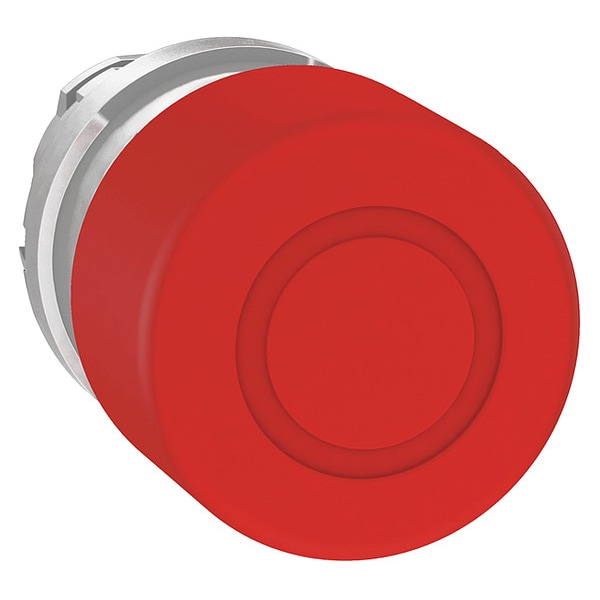

Push-Button, 22 mm, Red

Mfr # ZB4BT84TQ
Zoro # G3461815

$41.89

26% off

$31.00

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Action Maintained
Size 22 mm
Head Material Metal
Legend/Background Color No Legend
NEMA Rating 12, 13, 4, 4X

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Schneider Electric
MFR # ZB4BT84TQ
Zoro # G3461815
UPC #
785901980605
Country of Origin Czechia
Category Push Button Switches

Dimensions

Size	22 mm
Cad Overall Height	40 mm
Mounting Diameter	22 mm
Cad Overall Depth	56 mm
Cad Overall Width	40 mm
Manufacturer Warranty Length	18 mo
Panel Cutout Diameter	22 mm
Overall Depth	2.2 in
Overall Height	1.57 in
Overall Width	1.57 in
Mushroom Head Diameter	40 mm

Details

Action	Maintained
Head Material	Metal
Legend/Background Color	No Legend
NEMA Rating	12, 13, 4, 4X
Type of Operator	40mm Mushroom Head
Color	Red
Number of Operators	1
Item	Emergency Stop Push Button
Bezel Material	Metal
Basic Material	Metal
Series	XB4
Standards	Bureau Veritas, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, GB 14048.5, GL, IEC 50102, IEC 60068-2-27, IEC 60068-2-6, IEC 60364-5-53, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH Free of SVHC, RoHS, UL 508
Features	Visually Distinct at a Distance, Snap-Fit Assembly
IP Rating	IP66
Product Type	Emergency Stop Push Buttons
Shape Of Signaling Unit Head	round
Device Short Name	ZB4
Head Type	standard
Product Certifications	GL \|\| LROS (Lloyds register of shipping) \|\| DNV \|\| UL Listed \|\| CSA \|\| BV
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Operator Profile	red mushroom Ã˜ 40 mm, unmarked
Ik Degree Of Protection	IK06 IEC 50102
Protective Treatment	TH
Reset	push-pull
Resistance To High Pressure Washer	7000000 Pa 55Â°C 0.1 m
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X \|\| NEMA 4 \|\| NEMA 12
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 \|\| IP69 \|\| IP69K
Ambient Air Temperature For Operation	-40-70Â°C
Electrical Composition Code	C7 4 single front mounting \|\| C8 4 single and double front mounting \|\| C11 3 single front mounting \|\| C15 1 single front mounting \|\| C10 4 single and double front mounting
Product Or Component Type	head for emergency switching off push-button
Ambient Air Temperature For Storage	-40-70Â°C
Mechanical Durability	300000 cycles
Electrical Shock Protection Class	class I IEC 61140
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Push Button Style	Mushroom Head
Operating Temperature - Minimum	-40 Degrees F
Number of Indicator Lights	0
Hazardous Location Specification	Not Rated
Operating Temperature - Maximum	158 Degrees F
Maintained Action Release	Push/Pull
NEMA Enclosure Rating	1, 12, 13, 2, 3, 4, 4X
Operator Material	Metal
Operator Illumination	Non-Illuminated
Head Color	Red
Resistance Properties	Dust Resistant, Impact Resistant, Vibration Resistant, Watertight

Description

Emergency Stop Push Button, 22 mm, Maintained, Type of Operator 40mm Mushroom Head, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Red, NEMA Rating 12, 13, 4, 4X, IP Rating IP66, Legend Not Applicable, Legend/Background Color No Legend
