  13. Protective rear cover, Harmony XAP, for plastron XAPE305, insulated material, without opening, IP 65
Shop All Push Button Enclosures
Schneider Electric

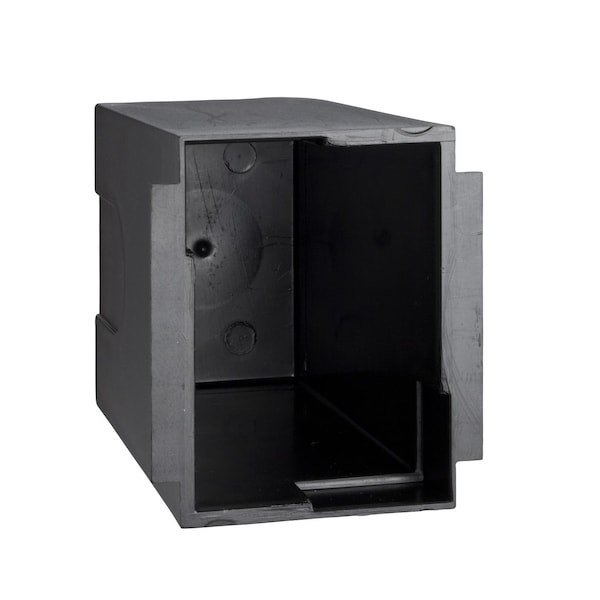

Protective rear cover, Harmony XAP, for plastron XAPE305, insulated material, without opening, IP 65

product price: $47.99
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Material insulated material
  • Cable Entry knock-out cable entries
  • Ambient Air Temperature For Storage -40-70°C
  • Product or Component Type protective rear cover
  • Ip Degree of Protection IP65 IEC 60529, IP657 NF C 20-010
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Details

Item Empty flush mounted box - XAP-E - insula
Material insulated material
Cable Entry knock-out cable entries
Ambient Air Temperature For Storage -40-70°C
Product or Component Type protective rear cover
Ip Degree of Protection IP65 IEC 60529, IP657 NF C 20-010
Range of Product Harmony XAP
Device Short Name XAPE
Product Mounting flush mounting
Resistance To Chemical Agents good resistant to acetone, good resistant to alcohols, good resistant to chloride and fluoride solvents, good resistant to diluted mineral acids, good resistant to oils and petrol, good resistant to organic acids, good resistant to salts
Protective Treatment TC, TH
Product Destination for front plate XAPE305
Electrical Shock Protection Class class I IEC 60536, class I NF C 20-030
Ambient Air Temperature For Operation -25-70°C
Product Or Component Type protective rear cover
Ip Degree Of Protection IP65 IEC 60529 || IP657 NF C 20-010

Description

This Harmony XAPE protective rear cover for front plate used insulated material. It has a rectangular shape and it is compatible with front plate XAPE305. This empty flush mounted box is designed as a protective rear cover for your control stations. It uses insulating fiberglass material and it is ideal for finger protection. It is compatible with flush front plate XAPE305. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP657, making it ideal for operation in harsh environments. It can be retrofitted with control stations to allow for finger protection. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
